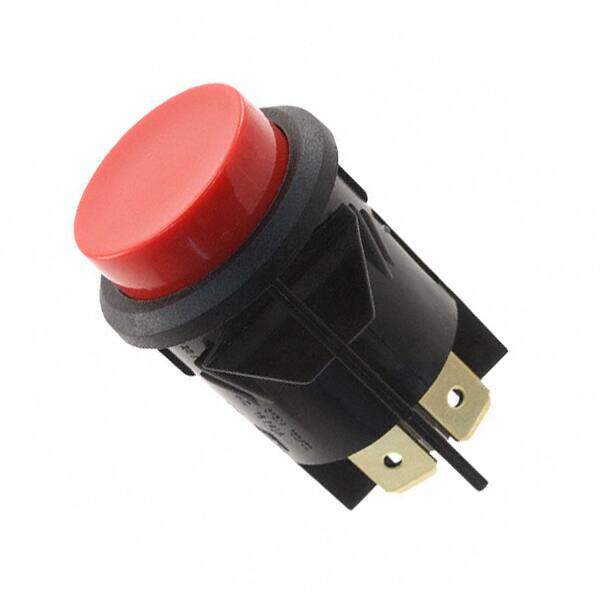

C7001AFBR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 16A 250V
PDF
/
Buying Options
Total Price: USD $8.72
Unit Price: USD $8.7208
≥1 USD $8.7208
≥10 USD $7.86016
≥100 USD $7.530688
≥500 USD $7.160384
≥1000 USD $6.872272
≥3000 USD $6.460784
Inventory: 93
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.382 inch
Length - Termination 0.358 inch
Technical
Body Color BLACK
Contact Function (ON)-OFF
Contact Voltage(AC)-Max 250V
Contact Current(AC)-Max 16A
Electrical Life 50000 Cycle(s)
Dielectric Withstanding Voltage 3000VAC V
Color - Actuator/Cap Red
Insulation Resistance 20000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 25.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 250V
Termination Style Quick Connect - 0.250 (6.3mm)
Ingress Protection IP40
Current Rating (Amps) 16A AC
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 7000
Packaging Bulk
Physical
End Contact Material SILVER ALLOY
Center Contact Material SILVER ALLOY
Actuator Material NYLON
Insulation Material NYLON
Surface Mount NO
Mounting Type Panel Mount, Snap-In
Supply Chain
Factory Lead Time 24 Weeks
