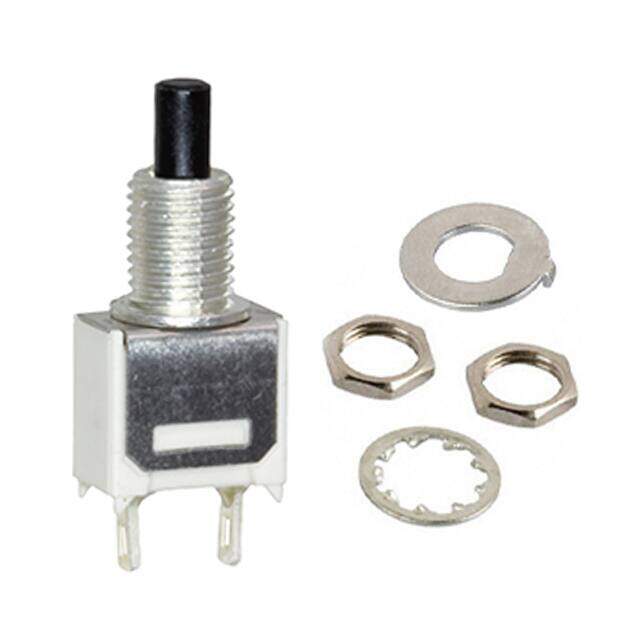

ZP33S010100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SUB-MINIATURE UNSEALED PUSHBUTTON SWITCH
PDF
/
Buying Options
Total Price: USD $5.53
Unit Price: USD $5.527388
≥1 USD $5.527388
≥10 USD $5.214513
≥100 USD $4.919359
≥500 USD $4.640904
≥1000 USD $4.378213
Inventory: 1239
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.156 inch
Length - Termination 0.11 inch
Body Height 8.5852mm
Technical
Bushing Diameter 0.19 inch
Bushing Length 0.22 inch
Solderability HAND
Actuator Travel 0.9906 mm
Contact Function OFF-(ON)
Electrical Life 20,000 Cycles
Contact Voltage(DC)-Max 48V
Contact Current(DC)-Max 0.5A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 4.90mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Breadth 4.9784 mm
Body Length or Diameter 8.0772mm
Voltage - Rated AC 48V
Termination Style Solder Lug
Current Rating (Amps) 500mA AC/DC
HTS Code 8536.50.90.33
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series ZP
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
End Contact Plating SILVER
End Contact Material BRASS
Center Contact Material BRASS
Center Contact Plating SILVER
Actuator Material THERMOPLASTIC
Insulation Material THERMOPLASTIC
Surface Mount NO
Mounting Type Panel Mount, Rear
Supply Chain
Factory Lead Time 9 Weeks
