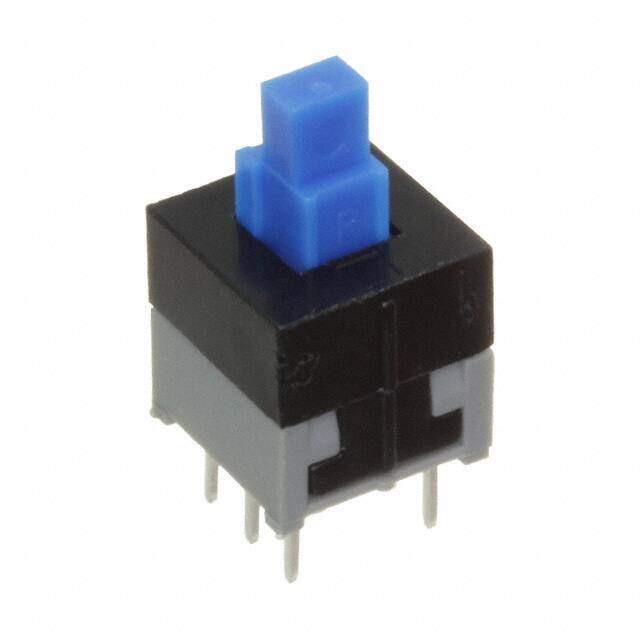

MHPS2283N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.616
≥1 USD $0.616
≥10 USD $0.54736
≥100 USD $0.471416
≥500 USD $0.381295
Inventory: 1163
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 5.5mm
Length - Termination 0.138 inch
Body Height 8.5mm
Technical
Number of Switches 1
Contact (DC) Max Rating R Load .1A@30VDC
Operating Force 1.76 N
Max Voltage Rating (DC) 30V
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Contact Current(DC)-Max 0.1A
Row Spacing 5.4 mm
Insulation Resistance 100000000Ohm
Contact Resistance 100mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Body Breadth 8.5 mm
Body Length or Diameter 8.5mm
Termination Style PC Pin
Current Rating 100mA
Terminal Pitch 2.5mm
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Type Keyswitch
ECCN Code EAR99
Termination PC Pin
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Series MHPS
Packaging Bulk
Operating Temperature -20°C~65°C
Physical
Terminal Material BRASS
Actuator Material Acetal
Housing Material PBT
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Contact Material Bronze
Supply Chain
Factory Lead Time 7 Weeks
