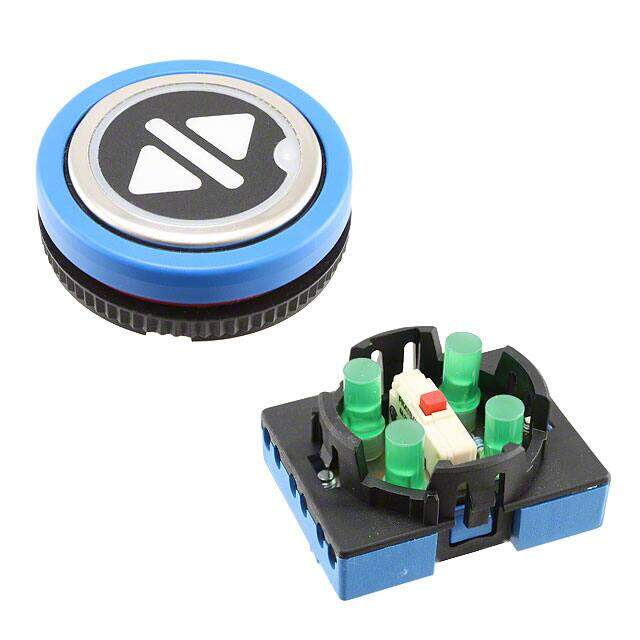

LPI5424G1K15714
RoHS
RoHS compliant
RoHS compliantPackage SMD/SMT
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 5A 12V
PDF
/
Inventory: 5628
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Front, Panel, Surface Mount
Mounting Type Panel Mount, Front
Package / Case SMD/SMT
Technical
Operating Temperature -20°C~65°C
Packaging Tray
Series LPI
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Standard, Illuminated
HTS Code 8536.50.90.33
Voltage - Rated DC 12V
Current Rating (Amps) 5A DC
Orientation Straight
Ingress Protection IP53 - Dust Protected, Water Resistant
Current Rating 5A
Termination Style Screw Terminal
Body Length or Diameter 43.9928mm
Actuator Type Round, Button, Flush
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 38.10mm Dia
Contact Resistance 100mOhm
Insulation Resistance 10000000Ohm
Color - Actuator/Cap White
Contact Current(DC)-Max 5A
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Green
Dielectric Withstanding Voltage 500VRMS V
Electrical Life 50,000 Cycles
Throw Configuration DPST, SPST
Max Voltage Rating (DC) 12V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 5A
Illumination Type LED
Illumination Color Green
Contact (DC) Max Rating R Load 5A@12VDC
Actuator Travel 2.0066 mm
Dimensions
Body Height 19.812mm
Actuator Length 0.256 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP53, Water Resistant
