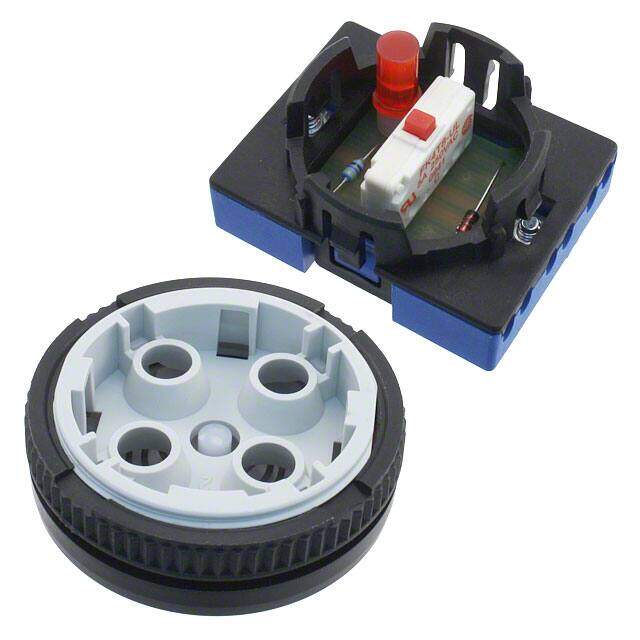

LPI5112R1K21705
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 5A 12V
PDF
/
Inventory: 2105
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Front, Panel, Screw
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~65°C
Packaging Tray
Series LPI
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Standard, Illuminated
Voltage - Rated DC 12V
Current Rating (Amps) 5A DC
Orientation Straight
Ingress Protection IP53 - Dust Protected, Water Resistant
Current Rating 5A
Termination Style Screw Terminal
Body Length or Diameter 43.9928mm
Actuator Type Round, Button, Flush
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 38.10mm Dia
Contact Resistance 100mOhm
Insulation Resistance 10000000Ohm
Color - Actuator/Cap White
Contact Current(DC)-Max 5A
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Red
Dielectric Withstanding Voltage 500VRMS V
Electrical Life 50,000 Cycles
Throw Configuration DPDT, DPST
Max Voltage Rating (DC) 12V
Mechanical Life 1,000,000 Cycles
Illumination Type LED
Illumination Color Red
Contact (DC) Max Rating R Load 5A@12VDC
Actuator Travel 2.0066 mm
Dimensions
Body Height 19.812mm
Actuator Length 0.256 inch
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP53, Water Resistant
