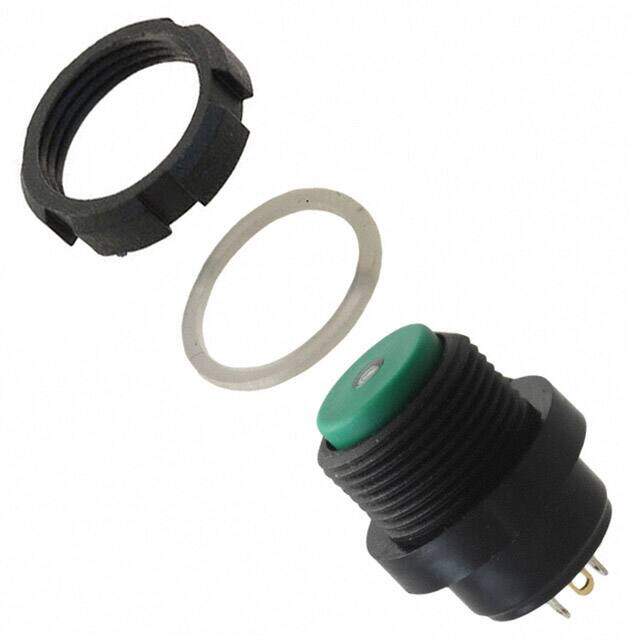

IZPP3S432L0G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.2A 250V
PDF
/
Buying Options
Total Price: USD $40.92
Unit Price: USD $40.92
≥1 USD $40.92
≥10 USD $37.23984
≥100 USD $35.508
≥500 USD $33.12628
≥1000 USD $31.82718
≥3000 USD $29.66209
Inventory: 187
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series IZ
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Voltage - Rated DC 48V
Current Rating (Amps) 200mA AC/DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 200mA
Termination Style Solder Lug
Voltage - Rated AC 250V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Green
Illumination Voltage (Nominal) 2.1VDC
Illumination Type, Color LED, Green
Electrical Life 500,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Illumination Type Illuminated, LED
Actuator Diameter 16 mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
