IRR8Z222000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

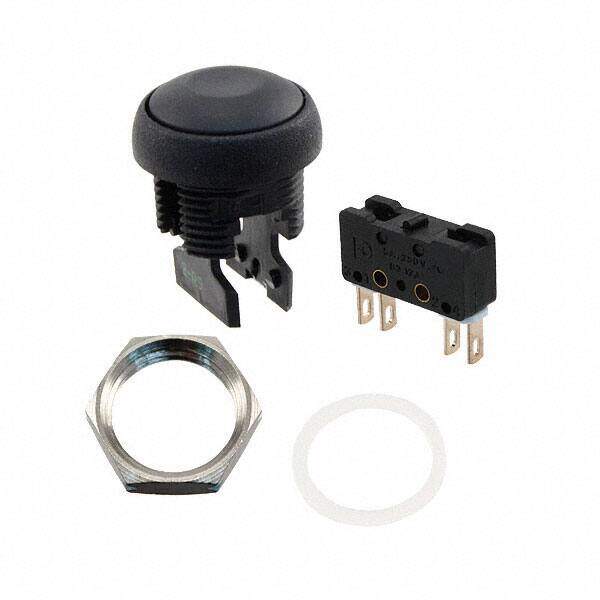

APEM IRR8Z222000 SWITCH, INDUSTRIAL PUSHBUTTON, 16MM
PDF
/
Buying Options
Total Price: USD $14.36
Unit Price: USD $14.3616
≥1 USD $14.3616
≥10 USD $13.04512
≥100 USD $12.902912
Inventory: 127
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Actuator Material Polyamide
Technical
Operating Temperature -20°C~85°C
Packaging Tray
Series IR
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 48V
Current Rating (Amps) 5A AC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 5A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 250V
Actuator Type Round, Button
Circuit DPST-NO/NC
Switch Function On-Mom, Off-Mom
Panel Cutout Dimensions Circular - 16.20mm Dia
Contact Resistance 100mOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Electrical Life 25,000 Cycles
Throw Configuration DPST
Mechanical Life 1,000,000 Cycles
Contact Current Rating 4A
Actuator Diameter 16 mm
Dimensions
Actuator Length 2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
