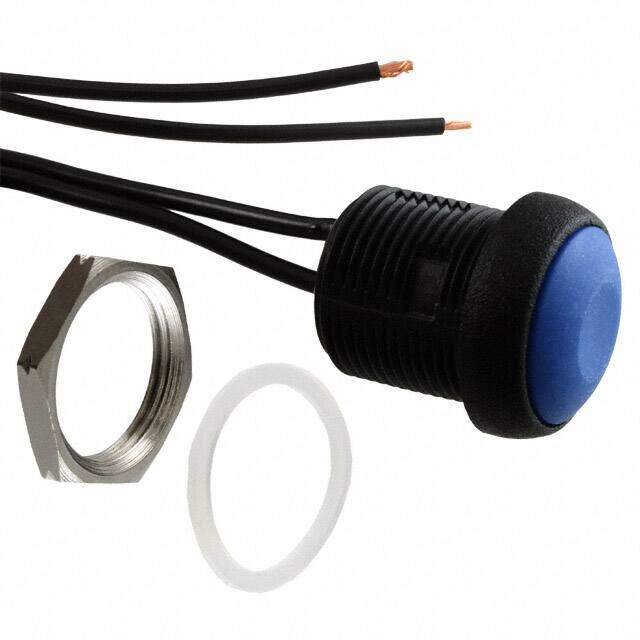

IRR3F4B2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.2A 250V
PDF
/
Buying Options
Total Price: USD $35.17
Unit Price: USD $35.1736
≥1 USD $35.1736
≥10 USD $32.01176
≥100 USD $30.522976
≥500 USD $28.475568
≥1000 USD $27.358848
≥3000 USD $25.497718
Inventory: 82
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Panel Thickness 8mm
Actuator Length 2mm
Technical
Actuator Diameter 16 mm
Contact Current Rating 200mA
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 48V
Throw Configuration SPST
Electrical Life 500,000 Cycles
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Blue, Dark
Insulation Resistance 1GOhm
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 16.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 250V
Termination Style Wire Leads
Current Rating 200mA
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 200mA AC/DC
Voltage - Rated DC 48V
Type Standard
ECCN Code EAR99
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series IR
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Actuator Material Polyamide
Mounting Type Panel Mount, Front
Mount Bushing, Front, Panel
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 13 Weeks
