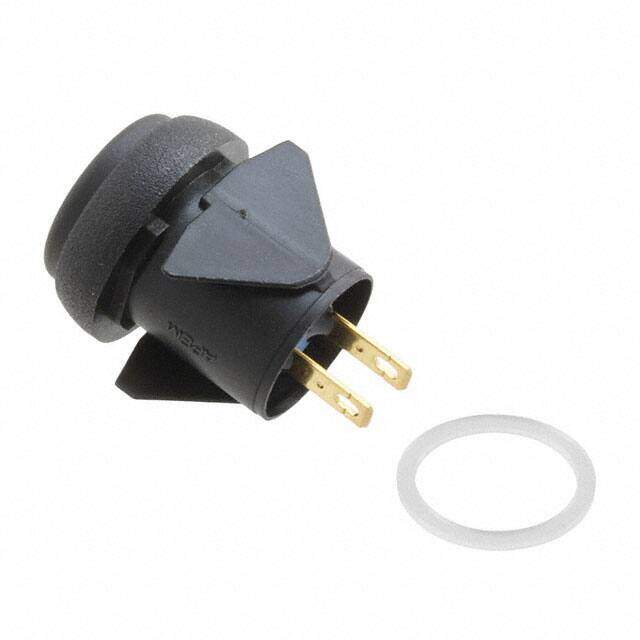

IQP3Z422
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.2A 48V
PDF
/
Buying Options
Total Price: USD $23.36
Unit Price: USD $23.355178
≥1 USD $23.355178
≥200 USD $9.038004
≥480 USD $8.720282
≥1000 USD $8.564047
Inventory: 4955
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Material Silver
Housing Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IQ
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 48V
Current Rating (Amps) 200mA DC
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating 200mA
Termination Style Quick Connect - 0.110 (2.8mm)
Body Length or Diameter 19.8mm
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 15.90mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.2A
Sealing EPOXY TERMINAL SEALED; IP67
Dielectric Withstanding Voltage 1500VRMS V
Electrical Life 500,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Contact (DC) Max Rating R Load .2A@48VDC
Actuator Travel 2.4892 mm
Operating Force-Max 6 N
Dimensions
Height 22mm
Width 16mm
Length - Termination 0.279 inch
Actuator Length 0.275 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
