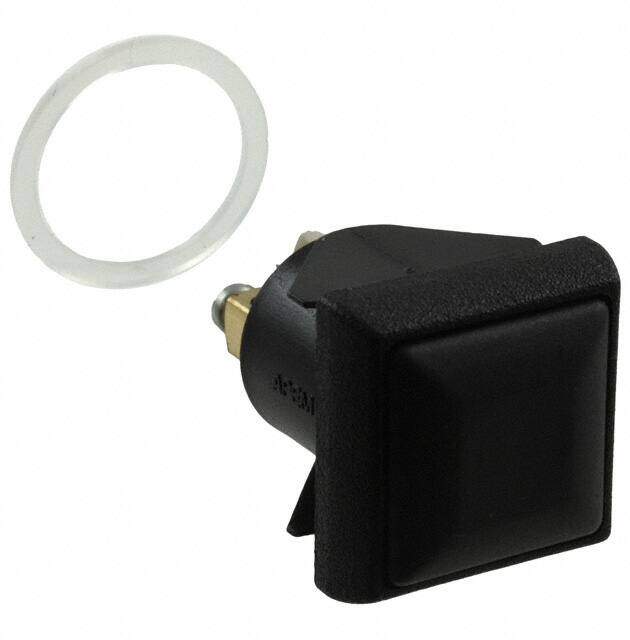

IQC3V222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST-NO 4A 48V
PDF
/
Inventory: 937
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Width 16mm
Height 22mm
Technical
Operating Force-Max 6 N
Contact (DC) Max Rating R Load 4A@48VDC
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 500,000 Cycles
Sealing EPOXY TERMINAL SEALED; IP67
Contact Current(DC)-Max 4A
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 15.90mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Body Length or Diameter 19.8mm
Termination Style Screw Terminal
Current Rating 4A
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating (Amps) 4A DC
Voltage - Rated DC 48V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IQ
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Thermoplastic
Material Silver
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
