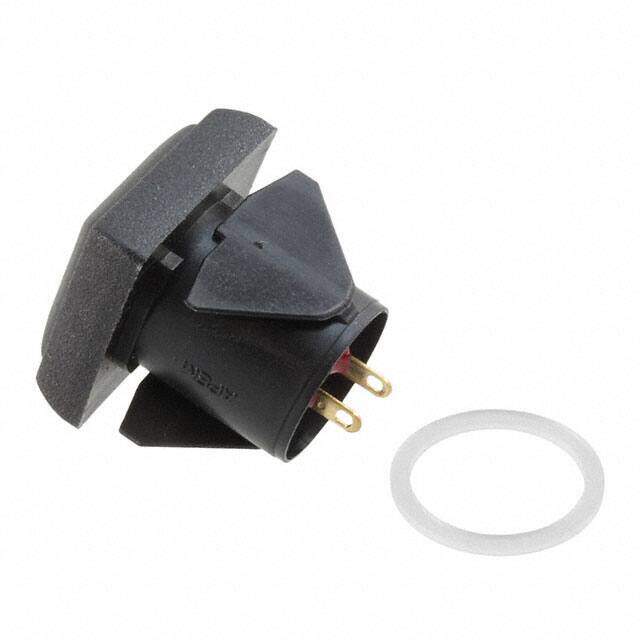

IQC3S422
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.2A 48V
PDF
/
Buying Options
Total Price: USD $22.51
Unit Price: USD $22.514922
≥1 USD $22.514922
≥200 USD $8.713717
≥480 USD $8.407812
≥1000 USD $8.255515
Inventory: 5032
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Width 16mm
Height 22mm
Technical
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 500,000 Cycles
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 15.90mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Termination Style Solder Lug
Current Rating 200mA
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating (Amps) 200mA DC
Voltage - Rated DC 48V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IQ
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Thermoplastic
Material Silver
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 9 Weeks
