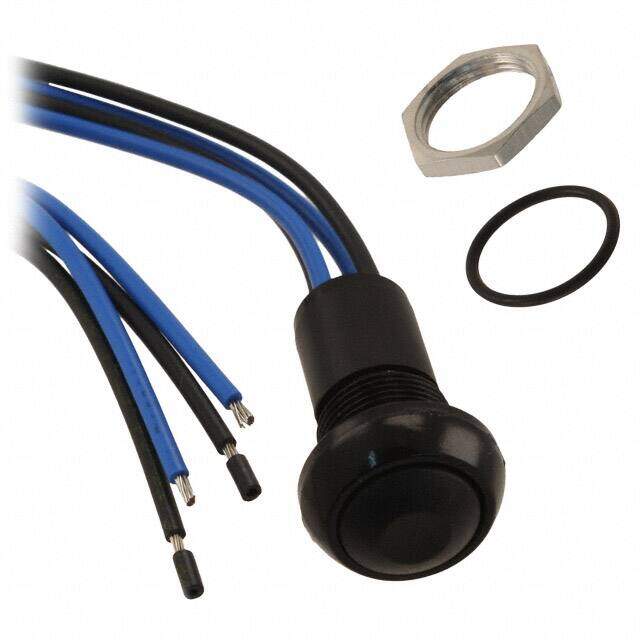

IPR5FAD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.5A 48V
PDF
/
Buying Options
Total Price: USD $28.52
Unit Price: USD $28.5208
≥1 USD $28.5208
≥10 USD $26.56544
Inventory: 875
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 2mm
Length 17.5mm
Technical
Mechanical Life 1e+06 cycles
Max Voltage Rating (DC) 48V
Throw Configuration DPST, SPDT
Electrical Life 500,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 48V
Color - Actuator/Cap Black
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 48V
Termination Style Wire Leads
Current Rating 200mA
Depth 17.5mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 500mA AC 200mA DC
Voltage - Rated DC 50V
Type Standard
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Tactile Feedback
Series IP
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Actuator Material Polyamide
Housing Material Thermoplastic
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Contact Material Silver
Supply Chain
Factory Lead Time 5 Weeks
