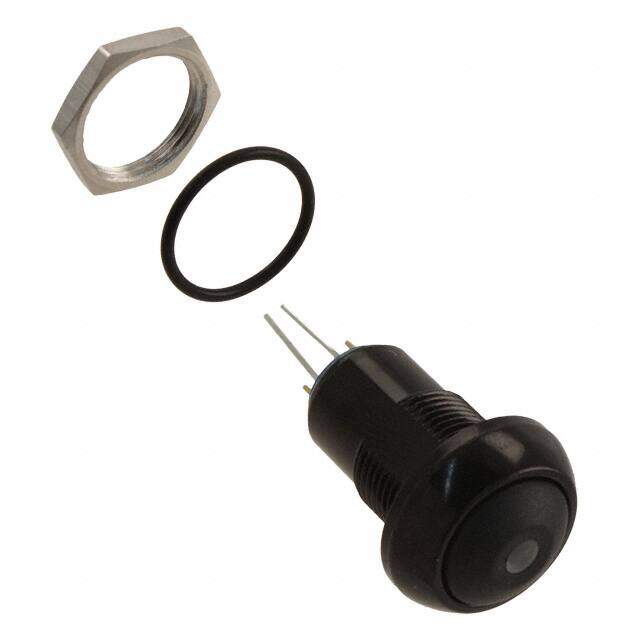

IPR1SAD2L0S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 4A 12V
PDF
/
Buying Options
Total Price: USD $39.9
Unit Price: USD $39.8992
≥1 USD $39.8992
≥10 USD $36.30704
≥100 USD $34.618848
≥500 USD $32.296704
≥1000 USD $31.030208
≥3000 USD $28.919334
Inventory: 522
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Actuator Material Polyamide
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IP
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
HTS Code 8536.50.90.33
Voltage - Rated DC 12V
Current Rating (Amps) 2A AC 4A DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 100mOhm
Color - Actuator/Cap Black
Contact Current(DC)-Max 4A
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Red
Electrical Life 200,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 24V
Contact Current Rating 2A
Illumination Type LED
Illumination Color Red
Operating Force-Max 5 N
Dimensions
Actuator Length 2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
