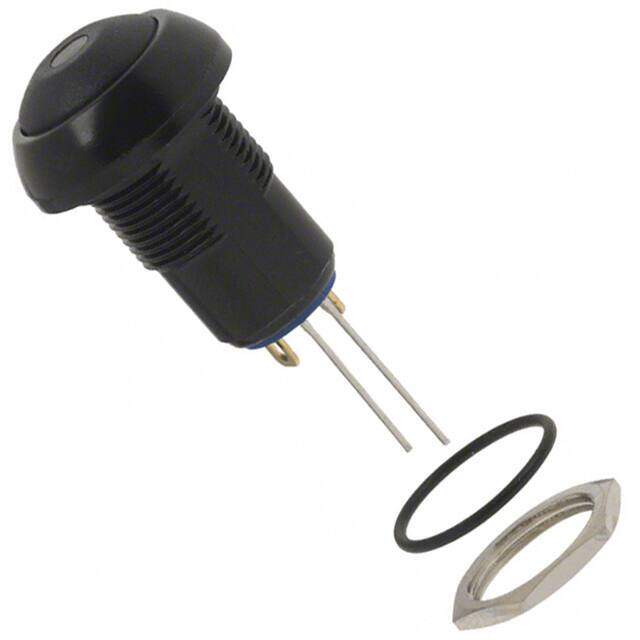

IPR1SAD2L0G
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 4A 12V
PDF
/
Buying Options
Total Price: USD $42.88
Unit Price: USD $42.87658
≥1 USD $42.87658
≥10 USD $40.4496
≥100 USD $38.16
≥500 USD $36
≥1000 USD $33.96226
≥3000 USD $32.03987
Inventory: 3797
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Package / Case 125
Actuator Material Polyamide
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Voltage - Rated DC 12V
Current Rating (Amps) 2A AC 4A DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 100mOhm
Color - Actuator/Cap Black
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Green
Electrical Life 200,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 24V
Illumination Type LED
Illumination Color Green
Contact Current(AC)-Max 2A
Bushing Length 0.322 inch
Bushing Diameter 0.472 inch
Dimensions
Actuator Length 2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
