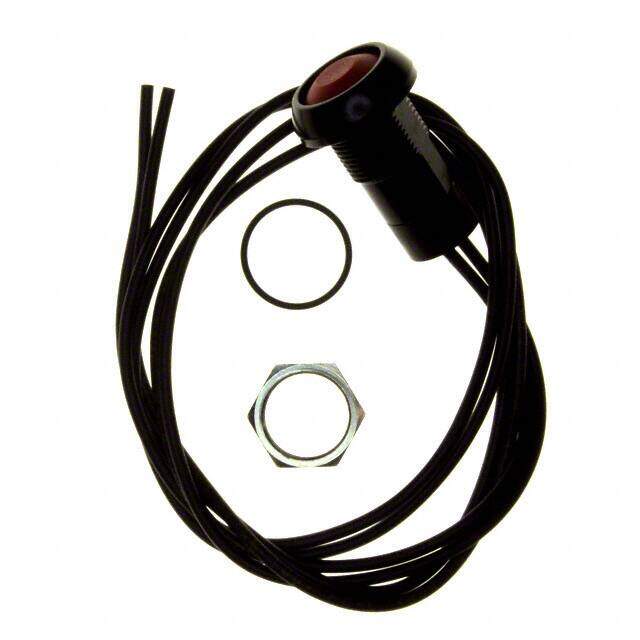

IPR1FAD6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 4A 12V
PDF
/
Buying Options
Total Price: USD $24.65
Unit Price: USD $24.6488
≥1 USD $24.6488
≥10 USD $22.95744
Inventory: 1539
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 2mm
Technical
Operating Force-Max 6.5 N
Contact Current(AC)-Max 2A
Contact Current Rating 4A
Max Voltage Rating (DC) 24V
Illumination GREEN LED
Number of Poles 1
Electrical Life 200,000 Cycles
Color - Actuator/Cap Red
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Wire Leads
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 2A AC 4A DC
Voltage - Rated DC 12V
HTS Code 8536.50.90.33
Type Standard
ECCN Code EAR99
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series IP
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Actuator Material Polyamide
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 5 Weeks
