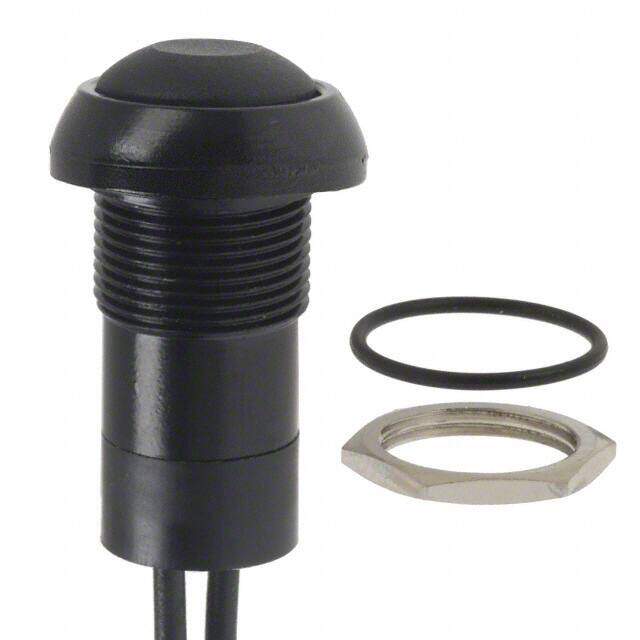

IPR1FAD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 4A 12V
PDF
/
Buying Options
Total Price: USD $35.06
Unit Price: USD $35.0592
≥1 USD $35.0592
≥10 USD $31.9044
≥100 USD $30.420896
≥500 USD $28.380352
≥1000 USD $27.267416
≥3000 USD $25.412464
Inventory: 69
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Actuator Material Polyamide
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
ECCN Code EAR99
Type Standard
Number of Positions 2
HTS Code 8536.50.90.33
Voltage - Rated DC 12V
Current Rating (Amps) 2A AC 4A DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 17.5mm
Current Rating 2A
Termination Style Wire Leads
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 100mOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 125V
Max Current Rating 2A
Electrical Life 200,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 24V
Contact Current(AC)-Max 2A
Operating Force-Max 6.5 N
Dimensions
Length 17.5mm
Actuator Length 2mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
