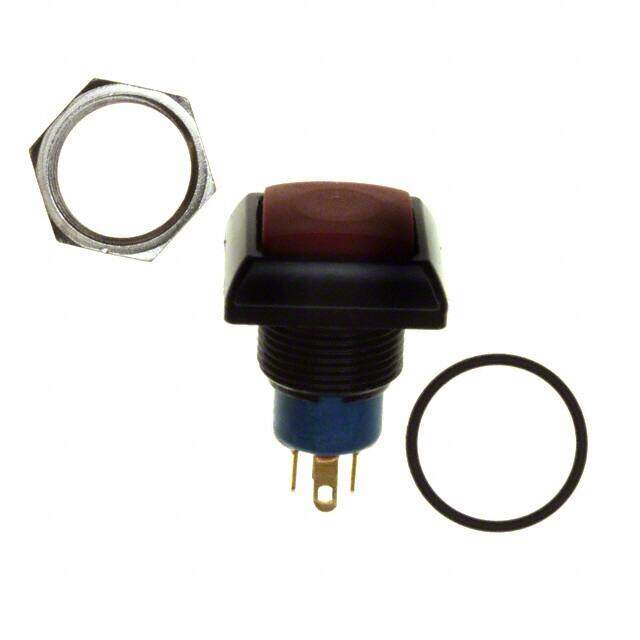

IPC5SAD6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.5A 48V
PDF
/
Inventory: 1365
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Gold, Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series IP
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 50V
Current Rating (Amps) 500mA AC 200mA DC
Orientation Vertical
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 200mA
Termination Style Solder Lug
Voltage - Rated AC 48V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 13.60mm Dia
Color - Actuator/Cap Red
Electrical Life 500,000 Cycles
Contact Current Rating 5A
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
