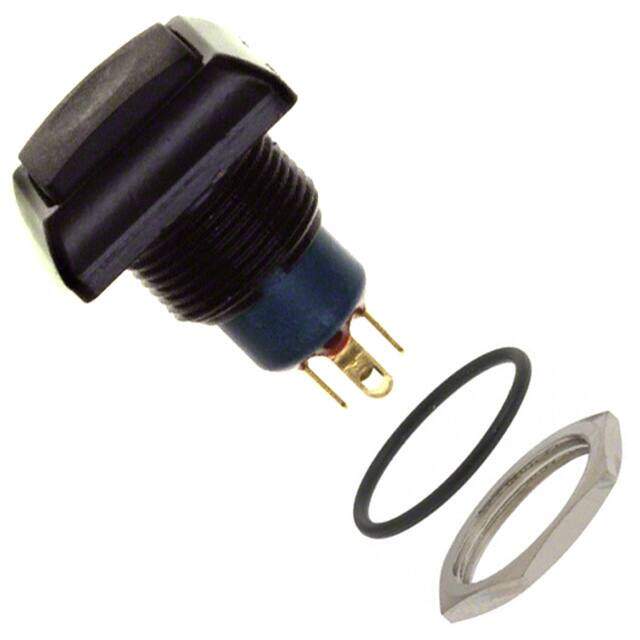

IPC5SAD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.5A 48V
PDF
/
Buying Options
Total Price: USD $16.85
Unit Price: USD $16.849816
≥1 USD $16.849816
≥10 USD $15.896052
≥100 USD $14.996274
≥500 USD $14.147431
≥1000 USD $13.346632
Inventory: 8192
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Body Height 6.4mm
Technical
Operating Force-Max 4 N
Contact (DC) Max Rating R Load .2A@50VDC
Contact (AC) Max Rating R Load .5A@48VAC
Contact Current Rating 5A
Electrical Life 500,000 Cycles
Contact Current(DC)-Max 0.2A
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Square, Button
Body Length or Diameter 12mm
Voltage - Rated AC 48V
Termination Style Solder Lug
Current Rating 200mA
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Vertical
Current Rating (Amps) 500mA AC 200mA DC
Voltage - Rated DC 50V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series IP
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 5 Weeks
