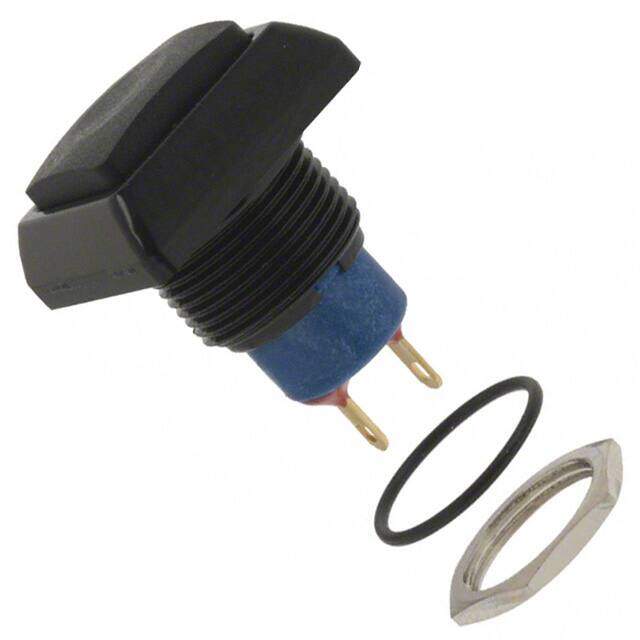

IPC3SAD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.5A 48V
PDF
/
Buying Options
Total Price: USD $21.38
Unit Price: USD $21.3752
≥1 USD $21.3752
≥10 USD $19.41192
≥100 USD $18.539488
≥500 USD $17.557936
≥1000 USD $16.903656
≥3000 USD $15.813072
Inventory: 1136
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 2mm
Body Height 6.4mm
Technical
Operating Force-Max 4 N
Contact Voltage(AC)-Max 48V
Contact (DC) Max Rating R Load .2A@50VDC
Contact Current(AC)-Max 0.5A
Contact Current Rating 500mA
Mechanical Life 1e+06 cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Number of Poles 1
Electrical Life 500,000 Cycles
Contact Current(DC)-Max 0.2A
Color - Actuator/Cap Black
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Voltage - Rated AC 48V
Termination Style Solder Lug
Current Rating 200mA
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 500mA AC 200mA DC
Voltage - Rated DC 50V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Tactile Feedback
Series IP
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Actuator Material Polyamide
Housing Material Thermoplastic
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 5 Weeks
