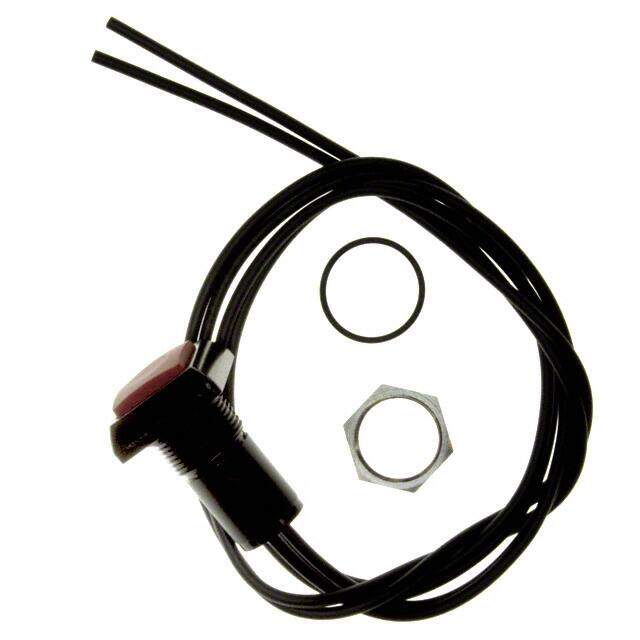

IPC3FAD6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.5A 48V
PDF
/
Inventory: 9601
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 2mm
Technical
Contact Current Rating 5A
Mechanical Life 1e+06 cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 500,000 Cycles
Color - Actuator/Cap Red
Contact Resistance 100mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Voltage - Rated AC 48V
Termination Style Wire Leads
Current Rating 200mA
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 500mA AC 200mA DC
Voltage - Rated DC 50V
Type Standard
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Tactile Feedback
Series IP
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Actuator Material Polyamide
Housing Material Thermoplastic
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 5 Weeks
