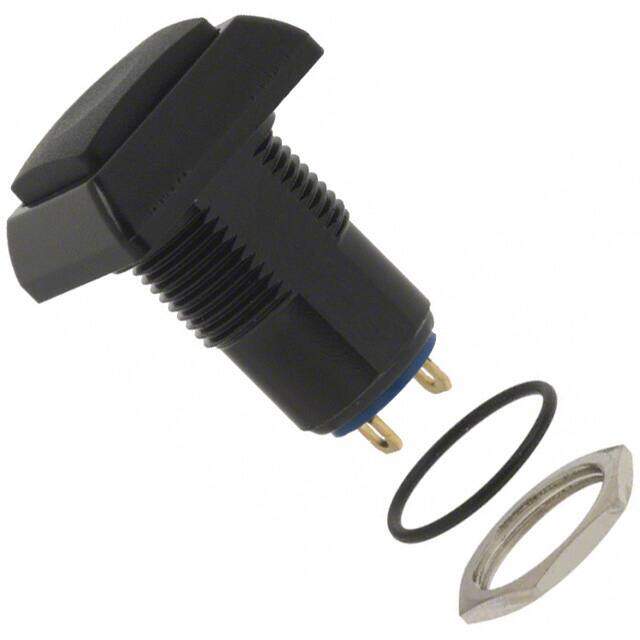

IPC1SAD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 4A 12V
PDF
/
Buying Options
Total Price: USD $20.52
Unit Price: USD $20.5216
≥1 USD $20.5216
≥10 USD $19.118
Inventory: 171
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Actuator Material Polyamide
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IP
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.33
Voltage - Rated DC 12V
Current Rating (Amps) 2A AC 4A DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 100mOhm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.1A
Electrical Life 200,000 Cycles
Max Voltage Rating (DC) 24V
Contact Current Rating 5A
Contact Current(AC)-Max 2A
Contact (AC) Max Rating R Load 2A@125VAC
Contact (DC) Max Rating R Load .1A@24VDC
Operating Force-Max 6.5 N
Dimensions
Actuator Length 2mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
