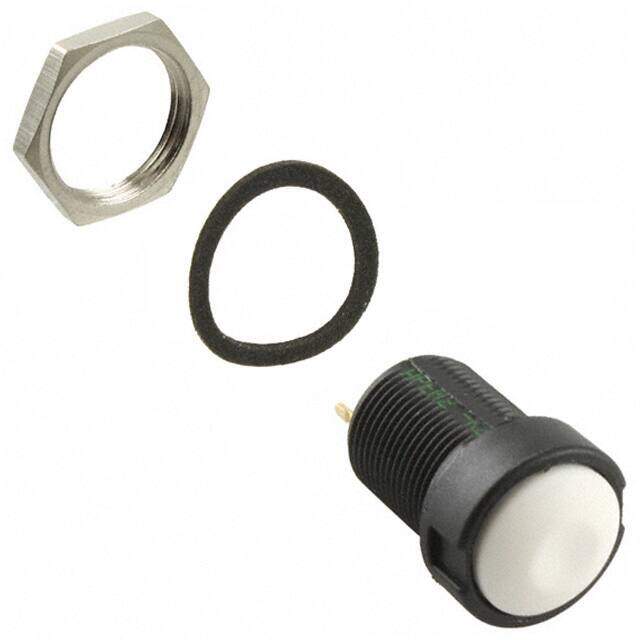

IMR7P472
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 28V
PDF
/
Buying Options
Total Price: USD $23.39
Unit Price: USD $23.389696
≥1 USD $23.389696
≥10 USD $22.065759
≥100 USD $20.816756
≥500 USD $19.638445
≥1000 USD $18.526835
Inventory: 2894
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Material Silver
Housing Material Polyamide
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IM
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 3A DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 3A
Termination Style PC Pin
Actuator Type Round, Button, Domed
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap White
Contact Current(DC)-Max 3A
Dielectric Withstanding Voltage 500VRMS V
Electrical Life 25,000 Cycles
Mechanical Life 1,000,000 Cycles
Illumination Type Illuminated
Contact (DC) Max Rating R Load 3A@28VDC
Actuator Travel 1.7018 mm
Dimensions
Height 18.1mm
Width 12mm
Length - Termination 0.146 inch
Actuator Length 0.078 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
