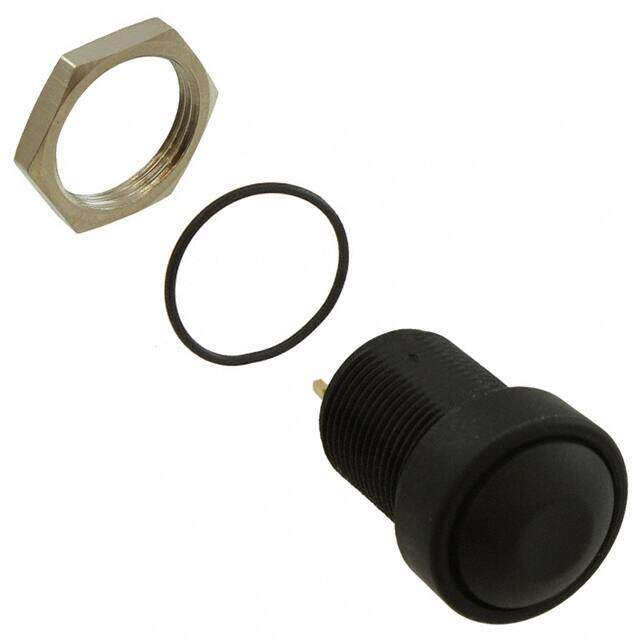

IMR7P422234
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 28V
PDF
/
Inventory: 4291
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.078 inch
Length - Termination 0.146 inch
Body Height 14.4018mm
Technical
Actuator Travel 1.7018 mm
Mechanical Life 1,000,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 500VRMS V
Contact Voltage(DC)-Max 28V
Contact Current(DC)-Max 3A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Domed
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 3A DC
Voltage - Rated DC 28V
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IM
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
End Contact Plating GOLD
End Contact Material SILVER
Center Contact Material SILVER
Center Contact Plating GOLD
Actuator Material POLYAMIDE
Insulation Material POLYAMIDE
Mounting Feature THROUGH HOLE-STRAIGHT
Surface Mount NO
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 9 Weeks
