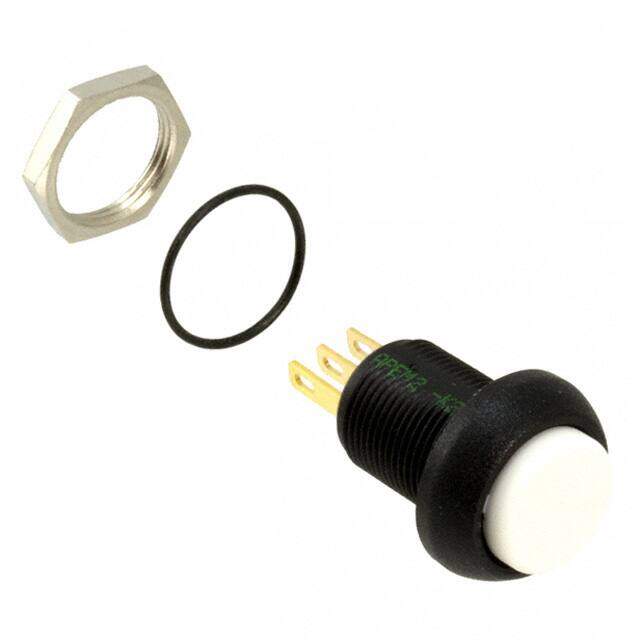

IMP7Z472
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 28V
PDF
/
Inventory: 3046
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.078 inch
Length - Termination 0.299 inch
Width 12mm
Height 22mm
Technical
Actuator Travel 1.7018 mm
Contact (DC) Max Rating R Load 3A@28VDC
Illumination Type Illuminated
Contact Current Rating 3A
Mechanical Life 1,000,000 Cycles
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 500VRMS V
Contact Current(DC)-Max 3A
Color - Actuator/Cap White
Insulation Resistance 1000000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 3A DC
Voltage - Rated DC 28V
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IM
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Polyamide
Material Silver
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 9 Weeks
