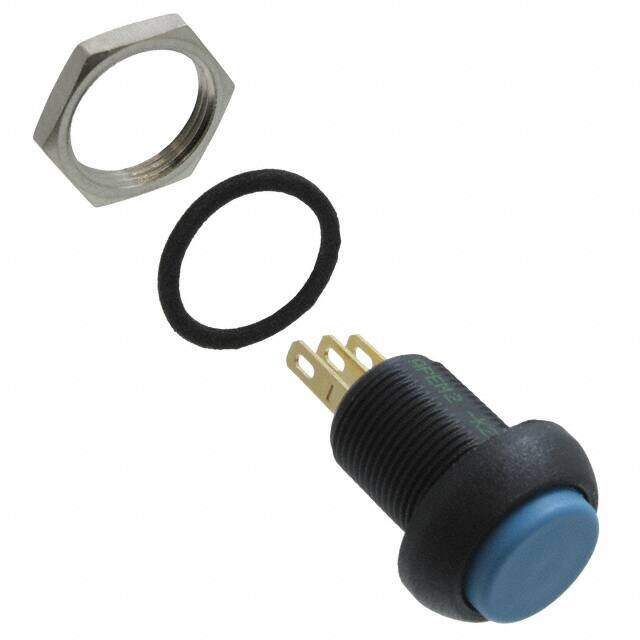

IMP7Z412
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 28V
PDF
/
Buying Options
Total Price: USD $20.87
Unit Price: USD $20.871647
≥1 USD $20.871647
≥10 USD $19.690238
≥100 USD $18.575694
≥500 USD $17.524237
≥1000 USD $16.532304
Inventory: 1157
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Material Silver
Housing Material Polyamide
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IM
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 3A DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 3A
Termination Style Quick Connect - 0.110 (2.8mm)
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Blue
Contact Current(DC)-Max 3A
Dielectric Withstanding Voltage 500VRMS V
Electrical Life 25,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current Rating 3A
Illumination Type Illuminated
Contact (DC) Max Rating R Load 3A@28VDC
Actuator Travel 1.7018 mm
Dimensions
Height 22mm
Width 12mm
Length - Termination 0.299 inch
Actuator Length 0.078 inch
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
