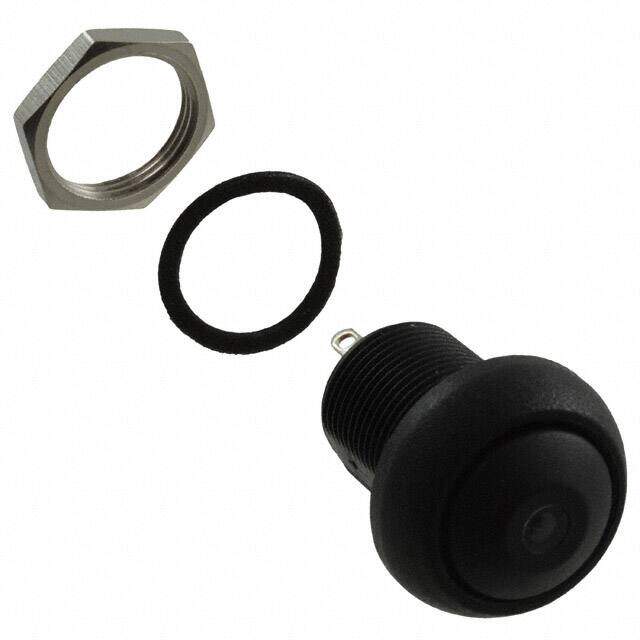

ILR3SAD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST-NO 2A 24V
PDF
/
Buying Options
Total Price: USD $18.17
Unit Price: USD $18.172
≥1 USD $18.172
≥10 USD $14.924976
≥100 USD $14.368816
Inventory: 890
Minimum: 1
-
+
Technical Details
Technical
Packaging Bulk
Operating Temperature -40°C~85°C
Actuator Travel 1.7018 mm
Contact (DC) Max Rating R Load 2A@24VDC
Illumination Type Illuminated
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 200,000 Cycles
Dielectric Withstanding Voltage 1000VRMS V
Contact Current(DC)-Max 2A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Domed
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 2A DC
Voltage - Rated DC 24V
HTS Code 8536.50.90.33
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IL
Physical
Housing Material Thermoplastic
Material Silver
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 9 Weeks
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.275 inch
Length - Termination 0.204 inch
Width 12mm
Height 27mm
