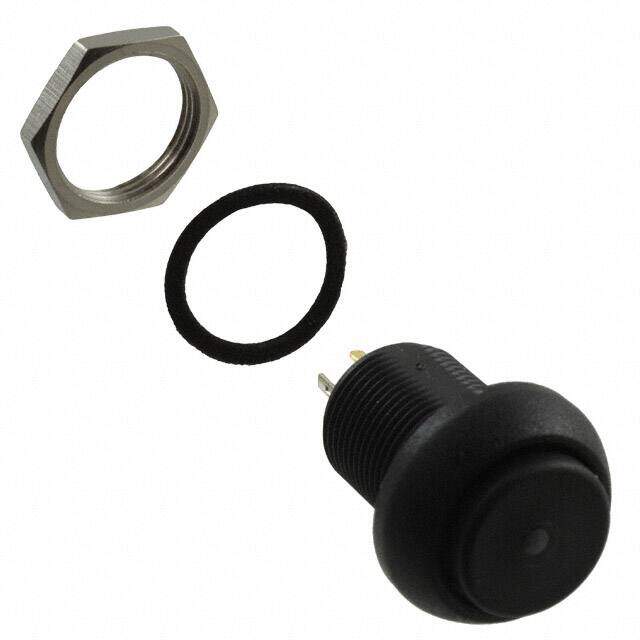

ILP3PAD2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST-NO 2A 24V
PDF
/
Buying Options
Total Price: USD $11.3
Unit Price: USD $11.302756
≥1 USD $11.302756
≥200 USD $4.374583
≥500 USD $4.220974
≥1000 USD $4.144825
Inventory: 1545
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.275 inch
Length - Termination 0.179 inch
Width 12mm
Height 27mm
Technical
Actuator Travel 1.7018 mm
Contact (DC) Max Rating R Load 2A@24VDC
Illumination Type Illuminated
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 200,000 Cycles
Dielectric Withstanding Voltage 1000VRMS V
Contact Current(DC)-Max 2A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Termination Style PC Pin
Current Rating 2A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 2A DC
Voltage - Rated DC 24V
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IL
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Thermoplastic
Material Silver
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 9 Weeks
