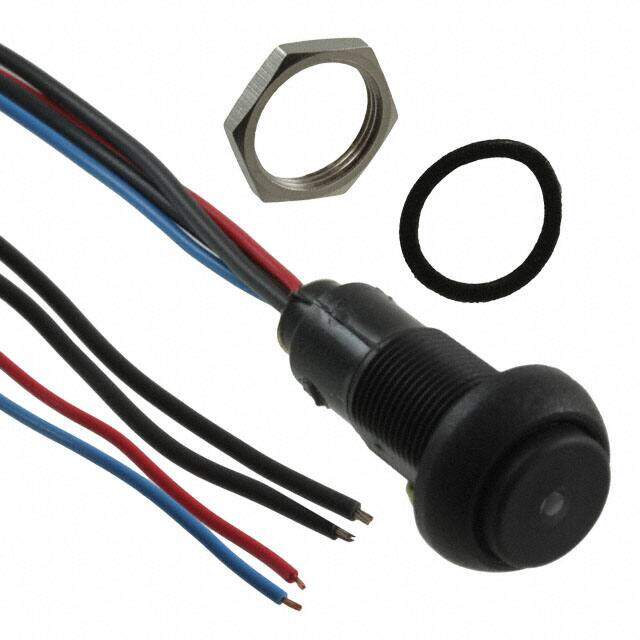

ILP3FAD2L0W
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST-NO 2A 24V
PDF
/
Inventory: 986
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Material Silver
Housing Material Thermoplastic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IL
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Standard, Illuminated
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Black
Voltage - Rated DC 24V
Current Rating (Amps) 2A DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Termination Style Wire Leads
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 13.60mm Dia
Color - Actuator/Cap Black
Illumination Voltage (Nominal) 3.35VDC
Illumination Type, Color LED, White
Electrical Life 200,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Illumination Type Illuminated, LED
Illumination Color White
Dimensions
Height 27mm
Width 12mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP67, Waterproof
