IFS3Z1AD600
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Switches / Pushbutton Switches
Description

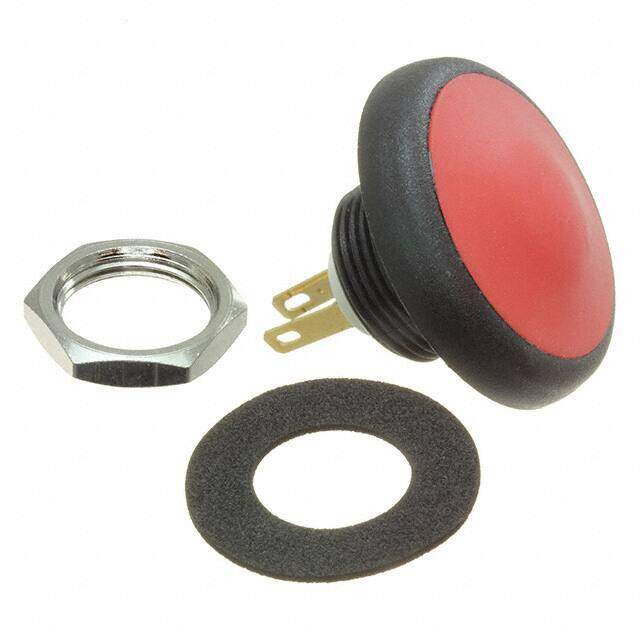

Push-button Switch Momentary function red, IFS3Z1AD600, Apem
PDF
/
Inventory: 1867
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.275 inch
Length - Termination 0.381 inch
Technical
Bushing Diameter 0.63 inch
Switching Current 100mA
Bushing Length 0.362 inch
Contact (DC) Max Rating R Load 0.1A@48VDC
Contact (AC) Max Rating R Load 0.4A@32VAC
Contact Current(AC)-Max 0.4A
Contact Current Rating 400mA
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 50V
Throw Configuration SPST
Electrical Life 500,000 Cycles
Max Voltage Rating (AC) 32V
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Red
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Housing Color Black
Actuator Type Round, Button
Voltage - Rated AC 32V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 100mA
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 400mA AC 100mA DC
Voltage - Rated DC 50V
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IF
Packaging Bulk
Operating Temperature -20°C~85°C
Physical
Actuator Material Polyamide, Rubber
Insulation Material THERMOPLASTIC
Package / Case 100
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 5 Weeks
