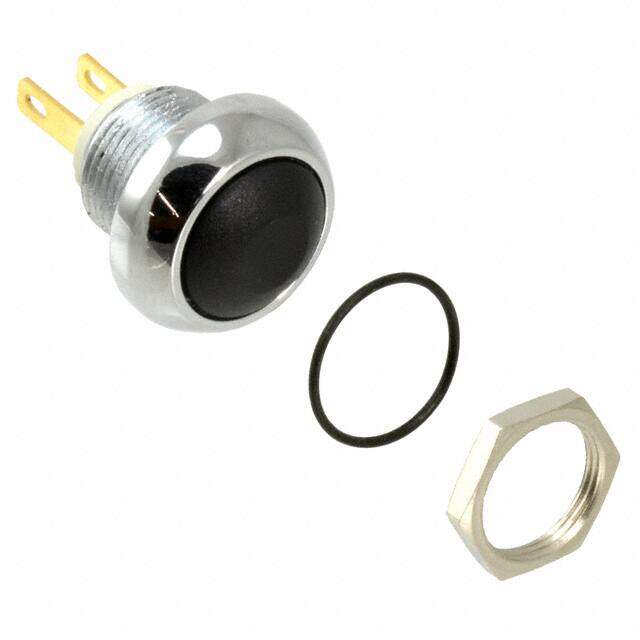

ICR3Z1AD2104
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 5A 48V
PDF
/
Inventory: 2893
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.275 inch
Length - Termination 0.33 inch
Width 12mm
Height 14mm
Technical
Bushing Length 0.267 inch
Actuator Travel 1.7018 mm
Contact (DC) Max Rating R Load 5A@28VDC
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 48V
Throw Configuration SPST
Electrical Life 500,000 Cycles
Dielectric Withstanding Voltage 1500VRMS V
Max Voltage Rating (AC) 48V
Contact Current(DC)-Max 5A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 48V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 500mA AC 5A DC
Voltage - Rated DC 28V
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IC
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Thermoplastic
Material Brass
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 13 Weeks
