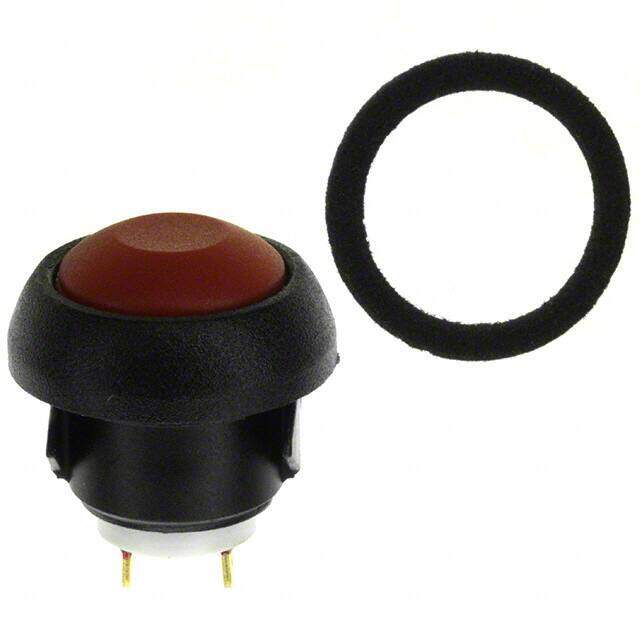

IBR3SAD600
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4A 32V
PDF
/
Buying Options
Total Price: USD $14.24
Unit Price: USD $14.2384
≥1 USD $14.2384
≥10 USD $11.570768
≥100 USD $11.150128
≥500 USD $8.679
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Thermoplastic
Actuator Material Polyamide
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series IB
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Color Black
Voltage - Rated DC 50V
Current Rating (Amps) 400mA AC 100mA DC
Orientation Straight
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating 100mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 50mOhm
Color - Actuator/Cap Red
Max Voltage Rating (AC) 125V
Electrical Life 500,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 50V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 400mA
Dimensions
Actuator Length 2mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings Dust Tight, IP54, IP67, Waterproof
