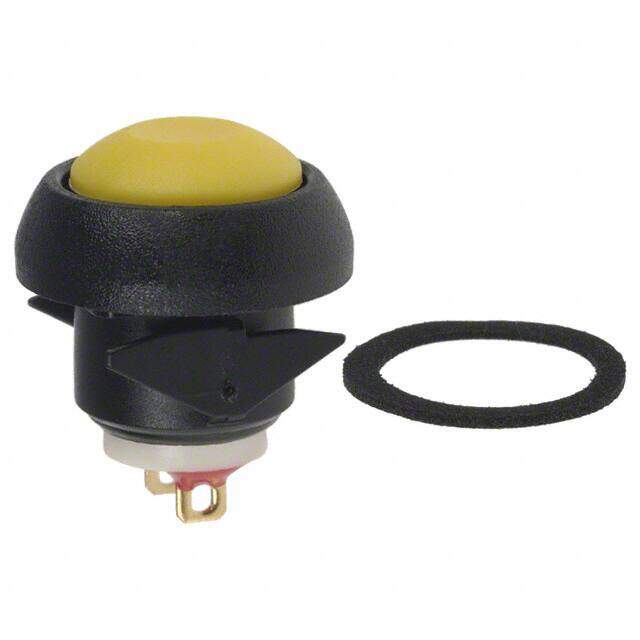

IBR3SAD500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4A 32V
PDF
/
Inventory: 2157
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 2mm
Body Height 9.8044mm
Technical
Contact (DC) Max Rating R Load 0.1A@48VDC
Contact (AC) Max Rating R Load 0.4A@32VAC
Contact Current(AC)-Max 0.4A
Contact Current Rating 400mA
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 50V
Throw Configuration SPST
Electrical Life 500,000 Cycles
Dielectric Withstanding Voltage 1000VRMS V
Max Voltage Rating (AC) 125V
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Yellow
Insulation Resistance 50000000Ohm
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 13.60mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 32V
Termination Style Solder Lug
Current Rating 100mA
Ingress Protection IP54 - Dust Protected, Water Resistant
Orientation Straight
Current Rating (Amps) 400mA AC 100mA DC
Voltage - Rated DC 50V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series IB
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Actuator Material Polyamide
Housing Material Thermoplastic
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 5 Weeks
