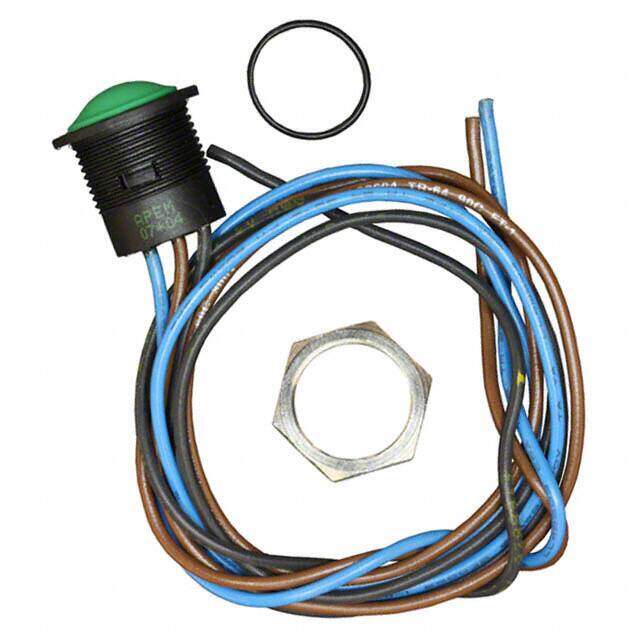

IAR5F1300
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 2A 24V
PDF
/
Inventory: 981
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Contact Plating Gold
Mount Bushing, Front, Panel
Mounting Type Panel Mount, Front
Housing Material Thermoplastic
Actuator Material Polyurethane
Technical
Operating Temperature -20°C~65°C
Packaging Bulk
Series IA
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
ECCN Code EAR99
Type Standard
Voltage - Rated DC 24V
Current Rating (Amps) 2A DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Termination Style Wire Leads
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.20mm Dia
Contact Resistance 100mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Green
Contact Current(DC)-Max 2A
Sealing EPOXY
Dielectric Withstanding Voltage 700VAC V
Electrical Life 1,000,000 Cycles
Max Voltage Rating (DC) 24V
Contact Current Rating 2A
Contact (DC) Max Rating R Load 2A@24VDC
Body Color BLACK
Dimensions
Body Height 19.685mm
Actuator Length 3.3mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
