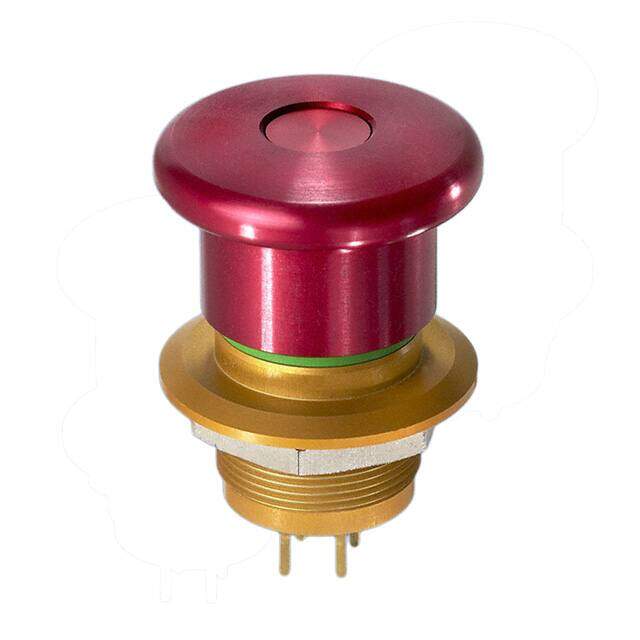

ES2P41653
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 1A 24V
PDF
/
Buying Options
Total Price: USD $67.19
Unit Price: USD $67.190283
≥1 USD $67.190283
Inventory: 6471
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Package / Case Metal
Material Aluminium
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series ES
Feature Status Indicator
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Emergency Stop
Voltage - Rated DC 24V
Current Rating (Amps) 1A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 1A
Termination Style PC Pin
Approval Agency EN
Actuator Type Round, Button, Mushroom
Operating Supply Voltage 24V
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Panel Cutout Dimensions Circular - 22.20mm Dia
Color - Actuator/Cap Red
Electrical Life 6,050 Cycles
Throw Configuration DPDT, DPST
Mechanical Life 100,000 Cycles
Illumination Type Illuminated
Illumination Color Green
Dimensions
Height 11.73mm
Width 35mm
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
