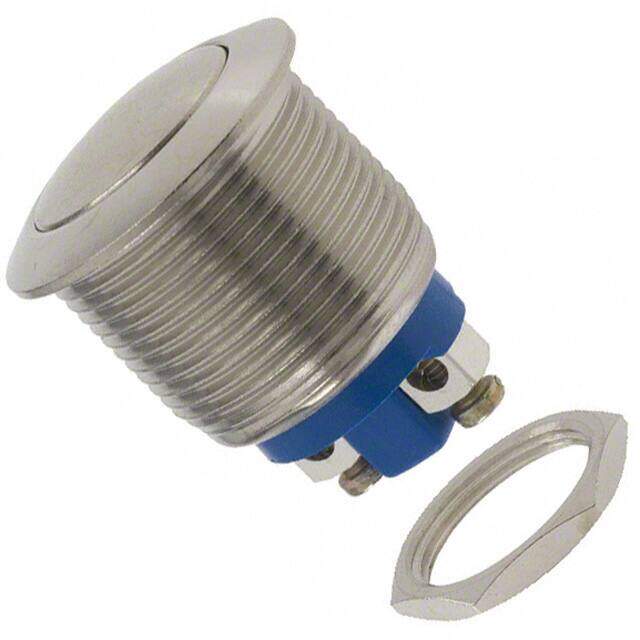

AV191003C900
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Switches / Pushbutton Switches
Description
PUSHBUTTON, METAL, CURVED, 19MM
PDF
/
Buying Options
Total Price: USD $38.52
Unit Price: USD $38.5176
≥1 USD $38.5176
≥10 USD $35.05392
≥100 USD $31.1817
≥500 USD $29.958896
≥1000 USD $27.920842
Inventory: 142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Nickel
Mount Front, Panel, Screw
Mounting Type Panel Mount, Front
Package / Case Metal
Number of Pins 2
Housing Material Polyester
Actuator Material Brass
Technical
Operating Temperature -30°C~70°C
Packaging Bulk
Series AV
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Anti-Vandal
Additional Feature NO SEAL
Voltage - Rated DC 48V
Current Rating (Amps) 2A DC
Orientation Straight
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating 2A
Termination Style Screw Terminal
Actuator Type Round, Button, Domed
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.20mm Dia
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 2A
Max Current Rating 2A
Electrical Life 10,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 48V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 2A
Contact Current(AC)-Max 4A
Contact Function ON-(OFF)
Dimensions
Actuator Length 1.6mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP54, Water Resistant
