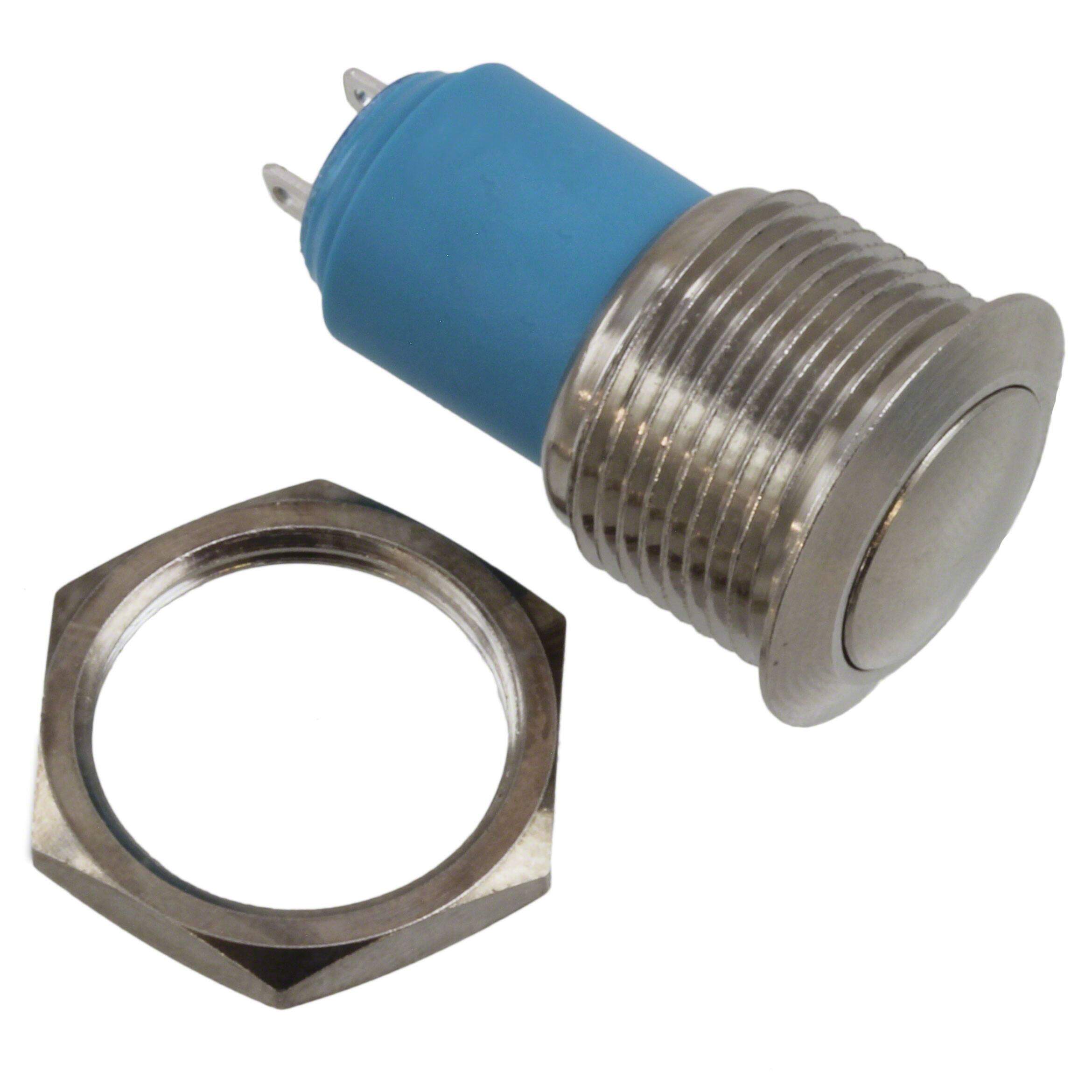

AV1611A200
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch;P/B;Vandal Resistant;SPST;OFF-ON;Round;Domed;IP54;1.5A;250VAC;16mm;Solder
PDF
/
Buying Options
Total Price: USD $48.03
Unit Price: USD $48.026296
≥1 USD $48.026296
≥10 USD $45.307824
≥100 USD $42.743234
≥500 USD $40.323809
≥1000 USD $38.04132
Inventory: 1150
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP54, Water Resistant
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 1.5mm
Body Height 24.2mm
Technical
Contact (DC) Max Rating R Load 1A@24VDC
Contact (AC) Max Rating R Load 1.5A@250VAC
Contact Current(AC)-Max 1.5A
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 24V
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 250V
Contact Current(DC)-Max 1A
Color - Actuator/Cap Silver
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.20mm Dia
Switch Function Off-On
Circuit SPST
Actuator Type Round, Button, Domed
Body Length or Diameter 18mm
Voltage - Rated AC 250V
Termination Style Solder Lug
Current Rating 1A
Ingress Protection IP54 - Dust Protected, Water Resistant
Orientation Straight
Current Rating (Amps) 1.5A AC 1A DC
Voltage - Rated DC 24V
HTS Code 8536.50.90.33
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AV
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Actuator Material Brass
Housing Material Polyamide
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 15 Weeks
