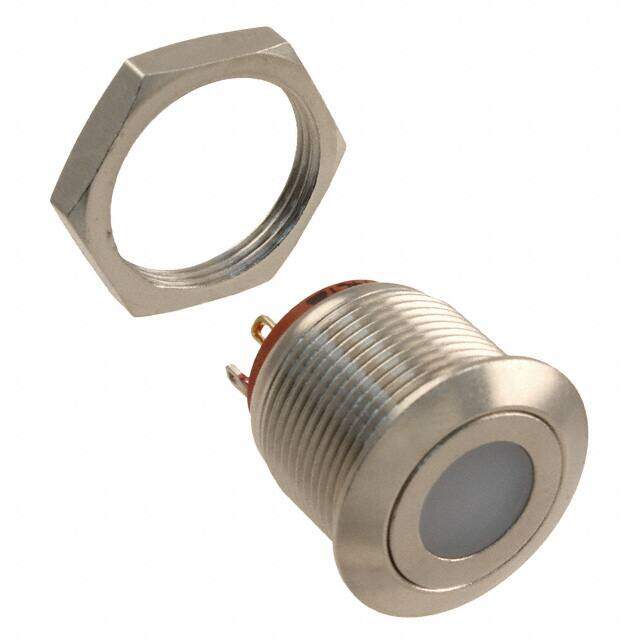

AV09C7L3D2006 image
Favorite
AV09C7L3D2006 image
Favorite

AV09C7L3D2006

APEM Inc.
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.05A 24V
PDF
/
Buying Options
Total Price: USD $74.57
Unit Price: USD $74.568218
≥1 USD $74.568218
≥10 USD $70.347379
≥100 USD $66.365455
≥500 USD $62.608915
≥1000 USD $59.065012
Inventory: 947
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Brass, Gold
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Material Metal
Housing Material Polybutylene
Actuator Material Brass

Technical

Operating Temperature -30°C~70°C
Packaging Bulk
Series AV
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Color Red
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Orientation Straight
Ingress Protection IP54 - Dust Protected, Water Resistant
Current Rating 50mA
Termination Style Solder Lug
Body Length or Diameter 18.9992mm
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.20mm Dia
Contact Resistance 100mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Contact Current(DC)-Max 0.05A
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Red
Dielectric Withstanding Voltage 2000VRMS V
Electrical Life 1,000,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Mechanical Life 100,000 Cycles
Contact Current Rating 50mA
Illumination Type LED
Illumination Color Red, Yellow
Contact (DC) Max Rating R Load 0.05A@24VDC
Contact Function OFF-(ON)
Bushing Length 0.531 inch
Actuator Finish NICKEL

Dimensions

Body Height 17.399mm
Length - Termination 0.163 inch
Actuator Length 0m

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings IP54, Water Resistant
