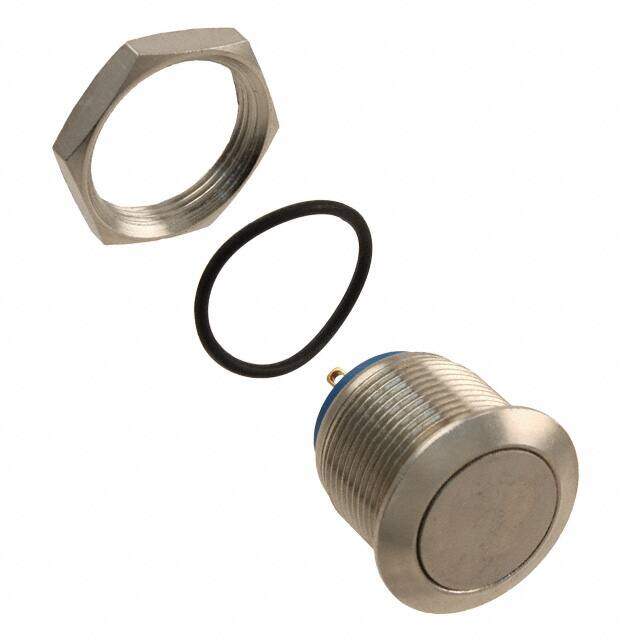

AV09C703D200K
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.05A 24V
PDF
/
Buying Options
Total Price: USD $49.31
Unit Price: USD $49.313784
≥1 USD $49.313784
≥10 USD $46.522438
≥100 USD $43.889094
≥500 USD $41.404807
≥1000 USD $39.061135
Inventory: 1147
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Nickel
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyester
Actuator Material Brass
Technical
Operating Temperature -30°C~70°C
Packaging Bulk
Series AV
Feature Sealed - Fully
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Anti-Vandal
Additional Feature INTERNAL & FRONT PANEL SEAL
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Orientation Straight
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating 50mA
Termination Style Solder Lug
Body Length or Diameter 18.9992mm
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 19.20mm Dia
Contact Resistance 100mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Silver
Dielectric Withstanding Voltage 2000VRMS V
Electrical Life 1,000,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Mechanical Life 100,000 Cycles
Contact Current Rating 5A
Contact (DC) Max Rating R Load 0.05A@24VDC
Contact Function OFF-(ON)
Bushing Length 0.531 inch
Dimensions
Body Height 17.399mm
Length - Termination 0.163 inch
Actuator Length 0m
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
