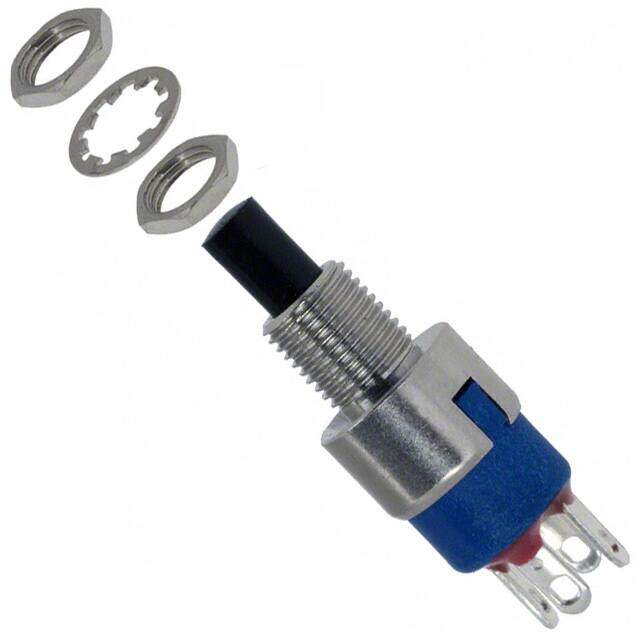

9633NCDB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 30V
PDF
/
Buying Options
Total Price: USD $10.17
Unit Price: USD $10.1728
≥1 USD $10.1728
≥10 USD $9.16696
≥100 USD $8.783104
≥500 USD $8.3512
≥1000 USD $8.015216
≥3000 USD $7.535264
Inventory: 1378
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass, Gold
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Thermoplastic
Actuator Material Glass, Polyamide
Technical
Operating Temperature -30°C~65°C
Packaging Bulk
Series 9000
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Orientation Straight
Depth 9.5mm
Current Rating 100mA
Termination Style Solder Lug
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Contact Resistance 50mOhm
Insulation Resistance 1GOhm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.1A
Sealing EPOXY TERMINAL SEALED
Max Current Rating 100mA
Electrical Life 250,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 30V
Contact Current Rating 100mA
Contact (DC) Max Rating R Load .1A@30VDC
Dimensions
Length 9.5mm
Body Height 10mm
Actuator Length 6mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
