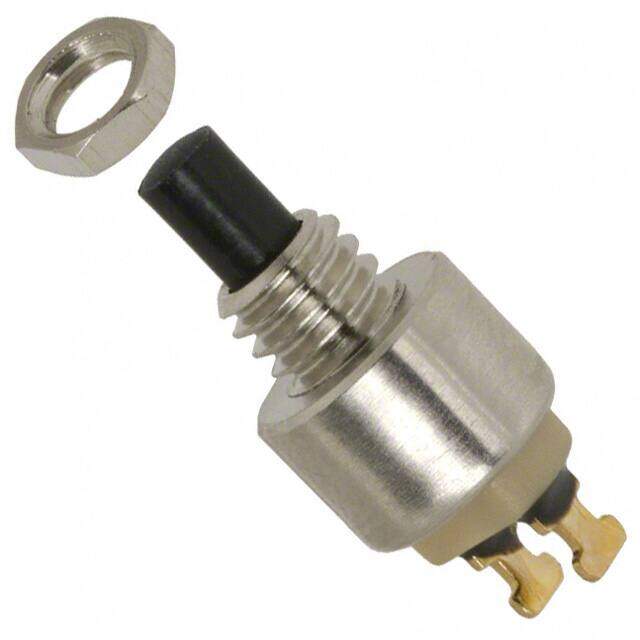

9533NCD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 30V
PDF
/
Buying Options
Total Price: USD $6.64
Unit Price: USD $6.635397
≥1 USD $6.635397
≥200 USD $2.648119
≥500 USD $2.560155
≥1000 USD $2.515516
Inventory: 1147
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.5mm
Body Height 6.1mm
Length 6.5mm
Technical
Contact (DC) Max Rating R Load .1A@30VDC
Contact Current Rating 100mA
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 250,000 Cycles
Max Current Rating 100mA
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Black
Contact Resistance 30mOhm
Panel Cutout Dimensions Circular - 4.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Termination Style Solder Lug
Current Rating 100mA
Depth 6.5mm
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.50
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 9000
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Polyamide
Housing Material Polyamide
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Gold
Contact Material Brass, Gold
Supply Chain
Factory Lead Time 5 Weeks
