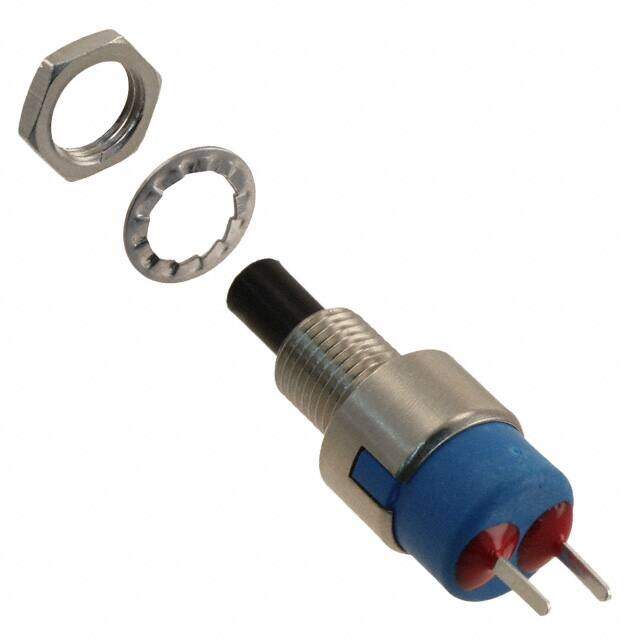

9432AB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 1A 30V
PDF
/
Buying Options
Total Price: USD $9.38
Unit Price: USD $9.3808
≥1 USD $9.3808
≥10 USD $8.45416
≥100 USD $8.099872
≥500 USD $7.701584
≥1000 USD $7.391824
≥3000 USD $6.949184
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 6mm
Body Height 11.85mm
Technical
Contact (DC) Max Rating R Load 1A@30VDC
Contact (AC) Max Rating R Load .6A@125VAC
Contact Current(AC)-Max 0.6A
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 250,000 Cycles
Max Voltage Rating (AC) 250V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 1A
Color - Actuator/Cap Black
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Plunger
Body Length or Diameter 10mm
Termination Style PC Pin
Current Rating 1A
Orientation Straight
Current Rating (Amps) 1A DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series 9000
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Polyamide
Mounting Type Panel Mount, Rear
Mount Panel, Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 13 Weeks
