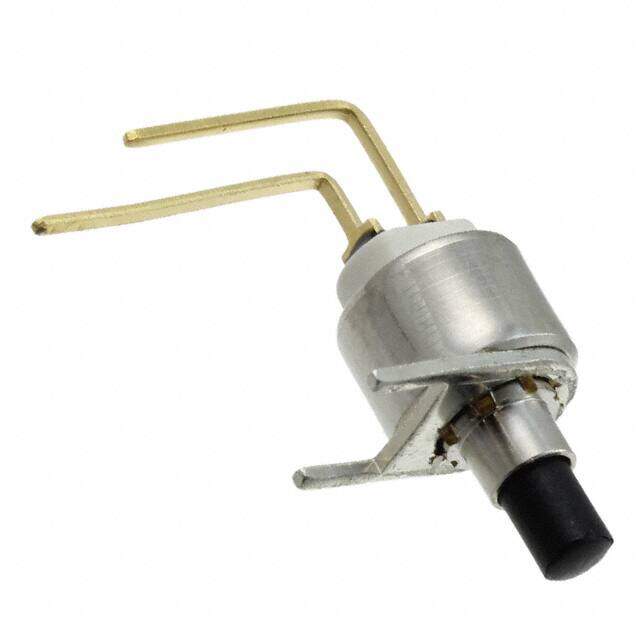

9233WWCD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 30V
PDF
/
Buying Options
Total Price: USD $6.66
Unit Price: USD $6.6616
≥1 USD $6.6616
≥10 USD $5.99632
≥100 USD $5.694656
≥500 USD $5.453536
≥1000 USD $5.272784
≥3000 USD $5.00163
Inventory: 678
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 6.5mm
Technical
PCB Hole Count 4
Contact (DC) Max Rating R Load .1A@30VDC
Contact Current Rating 100mA
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 100,000 Cycles
Max Current Rating 100mA
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.03mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Termination Style PC Pin
Current Rating 100mA
Depth 21.44mm
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.50
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series 9000
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Polyamide
Mounting Type Through Hole, Right Angle
Mount Bushing, PCB, Through Hole
Contact Plating Gold
Contact Material Brass, Gold
Supply Chain
Factory Lead Time 5 Weeks
