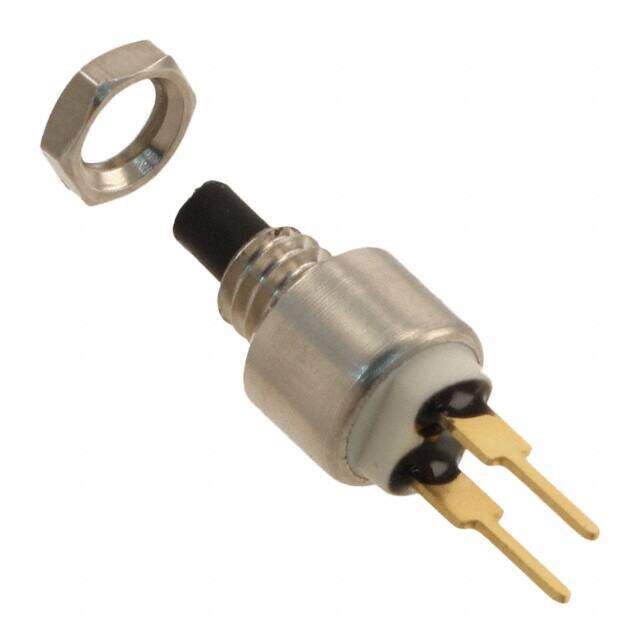

9233NCD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.1A 30V
PDF
/
Buying Options
Total Price: USD $2.9
Unit Price: USD $2.902822
≥1 USD $2.902822
≥200 USD $1.123842
≥500 USD $1.084455
≥1000 USD $1.064762
Inventory: 2558
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.5mm
Body Height 8.9mm
Technical
Contact (DC) Max Rating R Load .1A@30VDC
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 250,000 Cycles
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Black
Contact Resistance 30mOhm
Panel Cutout Dimensions Circular - 4.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Length or Diameter 6.5mm
Termination Style PC Pin
Current Rating 100mA
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 9000
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Polyamide
Housing Material Polyamide
Mounting Type Panel Mount, Rear
Mount Bushing, Panel, Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
