9233CD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

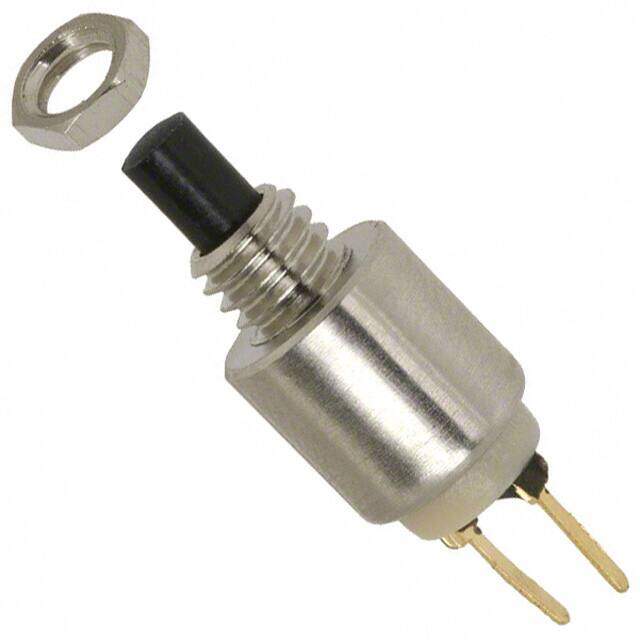

APEM 9233CD Pushbutton Switch, SPST-NO, Off-(On), 30 V, 100 mA, Solder
PDF
/
Buying Options
Total Price: USD $4.95
Unit Price: USD $4.9544
≥1 USD $4.9544
≥10 USD $4.4616
≥100 USD $4.238784
≥500 USD $4.060144
≥1000 USD $3.926384
≥3000 USD $3.725594
Inventory: 528
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 3.5mm
Body Height 8mm
Length 6.5mm
Technical
Life (Cycles) 100000 cycles
Contact (DC) Max Rating R Load .1A@30VDC
Contact Current Rating 100mA
Max Voltage Rating (DC) 30V
Throw Configuration SPST
Electrical Life 100,000 Cycles
Max Current Rating 100mA
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Black
Contact Resistance 30mOhm
Panel Cutout Dimensions Circular - 4.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Termination Style PC Pin
Current Rating 100mA
Depth 6.5mm
Orientation Straight
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 9000
Packaging Bulk
Operating Temperature -30°C~65°C
Physical
Actuator Material Glass, Polyamide
Housing Material Polyamide
Mounting Type Panel Mount, Rear
Mount PCB, Panel, Through Hole
Contact Plating Gold
Contact Material Brass, Gold
Supply Chain
Factory Lead Time 5 Weeks
