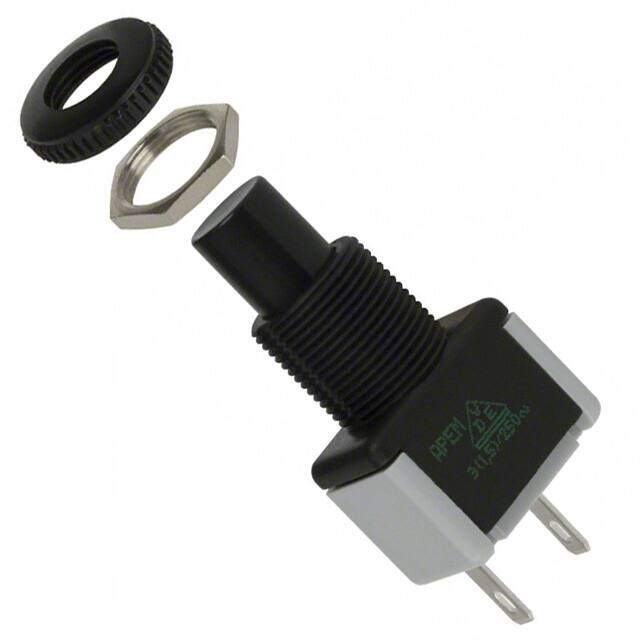

4731A02UU
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 6A 125V
PDF
/
Buying Options
Total Price: USD $6.6
Unit Price: USD $6.599948
≥1 USD $6.599948
≥200 USD $2.633677
≥480 USD $2.545713
≥1000 USD $2.502387
Inventory: 9358
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 7.3mm
Body Height 15mm
Length 19mm
Technical
Contact (AC) Max Rating R Load 6A@125VAC
Contact Current(AC)-Max 6A
Throw Configuration SPDT, SPST
Electrical Life 10,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Sealing DUST PROOF; WATER PROOF
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 12.20mm Dia
Switch Function On-Off
Circuit SPST
Actuator Type Round, Plunger
Body Breadth 12 mm
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 6A
Orientation Straight
Current Rating (Amps) 6A AC
HTS Code 8536.50.70.00
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 4700
Packaging Bulk
Operating Temperature -20°C~65°C
Physical
Actuator Material Polyamide
Mounting Type Panel Mount, Rear
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 13 Weeks
