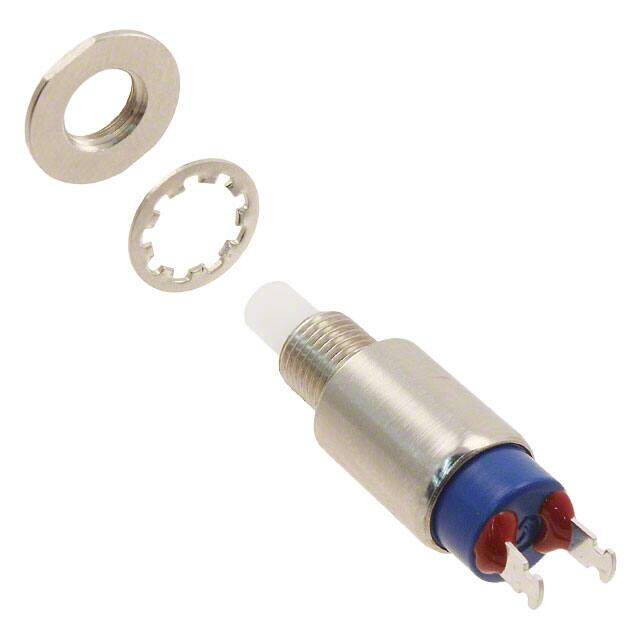

402ZQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1A 125V
PDF
/
Inventory: 3439
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 400
Packaging Bulk
Operating Temperature -30°C~85°C
Operating Force-Max 6.12 N
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Contact Current Rating 1A
Throw Configuration SPST
Electrical Life 40,000 Cycles
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 3A
Color - Actuator/Cap White
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Length or Diameter 9.53mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 1A
Orientation Vertical
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 28V
HTS Code 8536.50.90.31
Terminal Finish Silver (Ag)
Physical
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Tin
Supply Chain
Factory Lead Time 8 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Body Height 11.91mm
