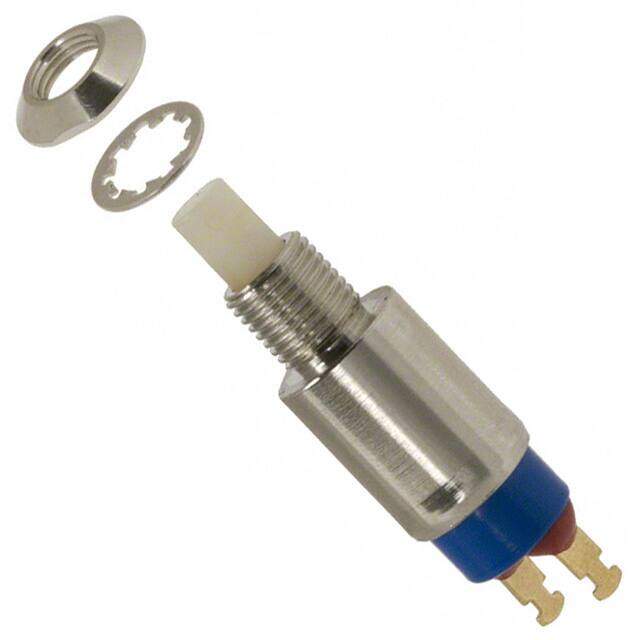

401ZBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $12.61
Unit Price: USD $12.6104
≥1 USD $12.6104
≥10 USD $11.30712
≥100 USD $10.810272
≥500 USD $10.250944
≥1000 USD $9.878176
≥3000 USD $9.256958
Inventory: 410
Minimum: 1
-
+
Technical Details
Technical
Max Voltage Rating (AC) 20V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 0.02A
Color - Actuator/Cap White
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Off
Circuit SPST
Actuator Type Round, Plunger
Body Length or Diameter 9.53mm
Voltage - Rated AC 20V
Termination Style Solder Lug
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 400
Packaging Bulk
Operating Temperature -30°C~85°C
Operating Force-Max 6.12 N
Contact (DC) Max Rating R Load .02A@20VDC
Contact (AC) Max Rating R Load .02A@20VAC
Contact Current(AC)-Max 0.02A
Max Voltage Rating (DC) 20V
Electrical Life 40,000 Cycles
Physical
Actuator Material Nylon
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Bushing, Panel
Contact Plating Gold
Contact Material Brass, Gold
Supply Chain
Factory Lead Time 8 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 5.28mm
Body Height 11.91mm
