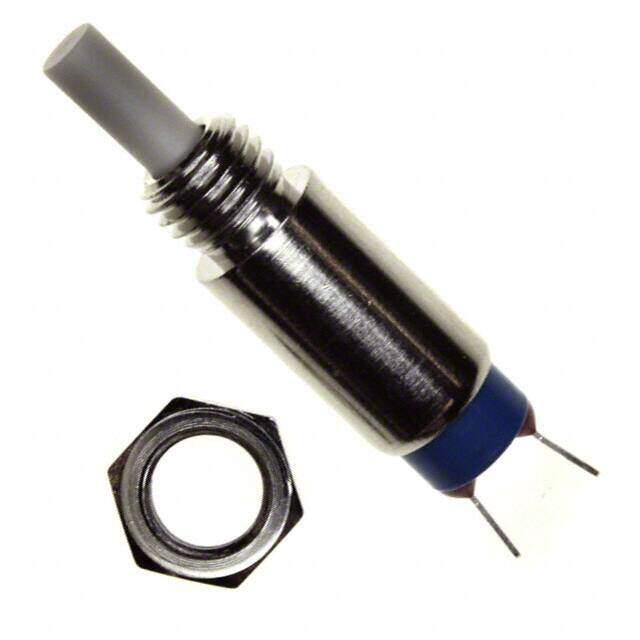

306CQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1A 125V
PDF
/
Inventory: 2454
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Silver
Mount Bushing, Panel, Through Hole
Mounting Type Panel Mount, Rear
Housing Material Resin
Actuator Material Nylon
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Series 300
JESD-609 Code e4
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Additional Feature PANEL MOUNT-THREADED ALSO AVAILABLE
HTS Code 8536.50.90.31
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Current Rating 1A
Termination Style PC Pin
Voltage - Rated AC 125V
Body Length or Diameter 9.4mm
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 10mOhm
Color - Actuator/Cap White
Contact Current(DC)-Max 3A
Sealing EPOXY TERMINAL SEALED
Max Voltage Rating (AC) 125V
Electrical Life 250,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 28V
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Contact (DC) Max Rating R Load 3A@28VDC
Operating Force-Max 2.5 N
Dimensions
Body Height 20mm
Actuator Length 8.92mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
