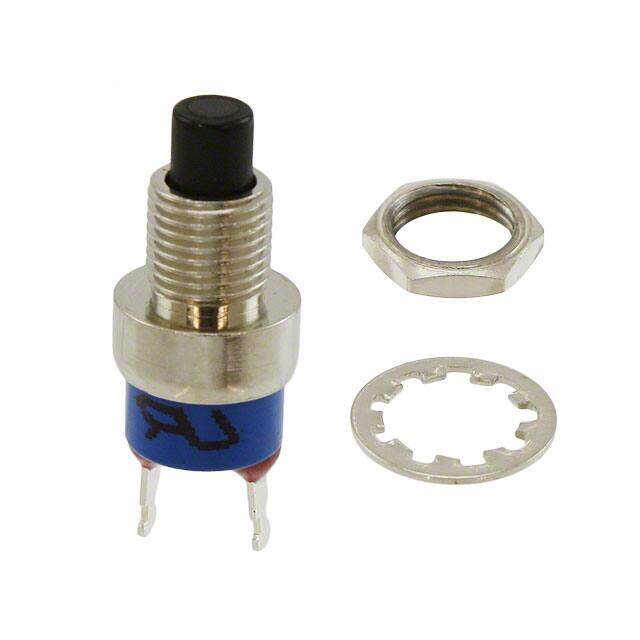

302ZQEUL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.5A 125V
PDF
/
Inventory: 2213
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.72mm
Length - Termination 0.22 inch
Body Height 8.1mm
Technical
Operating Force-Max 3.89 N
Body Color RED
Bushing Length 0.224 inch
Contact Function OFF-(ON)
Contact (DC) Max Rating R Load 3A@28VDC
Contact (AC) Max Rating R Load 3A@125VAC
Contact Current(AC)-Max 3A
Max Voltage Rating (DC) 28V
Throw Configuration SPST
Electrical Life 250,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Max Voltage Rating (AC) 125V
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 3A
Color - Actuator/Cap Black
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Length or Diameter 9.4mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 500mA
Orientation Straight
Current Rating (Amps) 1A AC
Voltage - Rated DC 28V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 300
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Nylon
Housing Material Resin
Mounting Type Panel Mount, Rear
Mount Bushing, Panel
Contact Material Silver
Supply Chain
Factory Lead Time 12 Weeks
