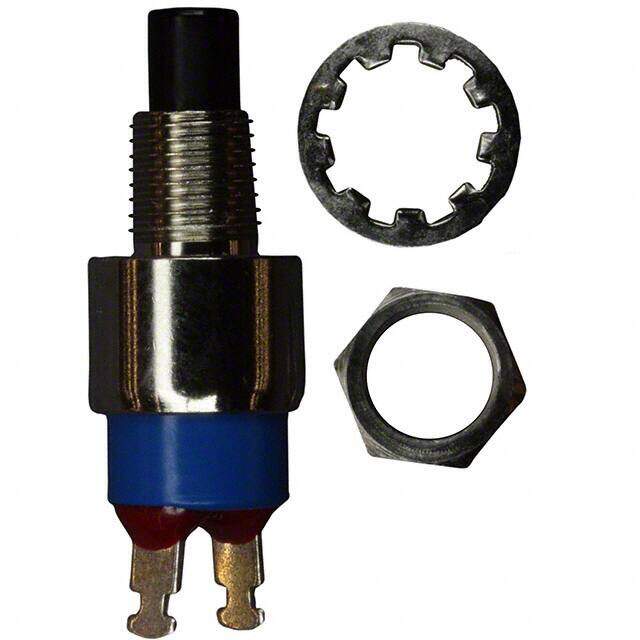

301ZQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1A 125V
PDF
/
Inventory: 1594
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Silver
Contact Plating Tin
Mount Panel
Mounting Type Panel Mount, Rear
Insulation Material DIALLYL PHTHALATE
Actuator Material Nylon
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Series 300
JESD-609 Code e4
Feature Overtravel
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 9.4mm
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 10mOhm
Insulation Resistance 10000000000Ohm
Color - Actuator/Cap Black
Contact Current(DC)-Max 3A
Sealing EPOXY TERMINAL SEALED
Max Voltage Rating (AC) 125V
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 250,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 28V
Contact Current Rating 1A
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@125VAC
Contact (DC) Max Rating R Load 3A@28VDC
Contact Function OFF-(ON)
Actuator Diameter 4.064 mm
Bushing Length 0.224 inch
Body Color RED
Operating Force-Max 3.48 N
Bushing Diameter 0.25 inch
Dimensions
Body Height 10.9mm
Length - Termination 0.22 inch
Actuator Length 4.52mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
